BULLS E-Stream EVA TR 3 27.5+ 2021

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
25,6 kg

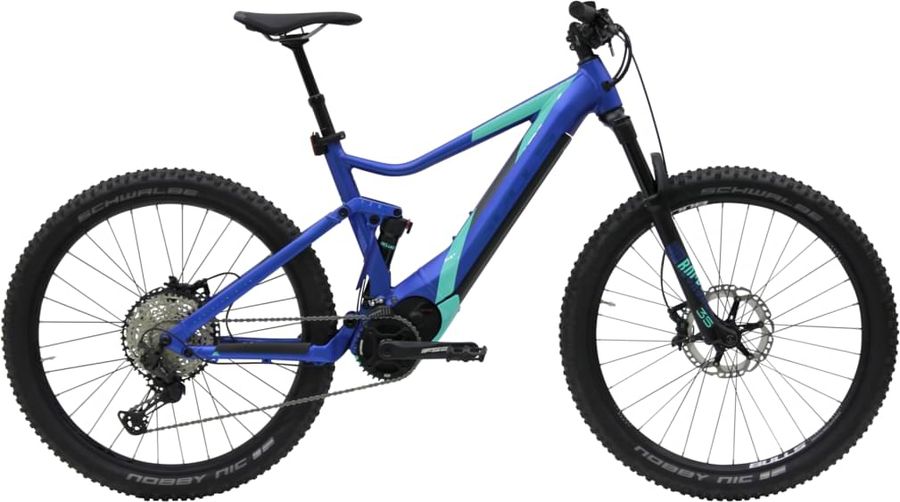

BULLS E-Stream EVA TR 3 27.5+ 2021

About the BULLS E-Stream EVA TR 3 27.5+ 2021

The BULLS E-Stream EVA TR 3 27.5+ 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 25,6 kg.

Features

The BULLS E-Stream EVA TR 3 27.5+ 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Wellgo ZZE-01M
Remote
BLOKS 14D
Components
Steam
MonkeyLink AS-ML1
Saddle
BULLS 1216HRN
Battery
Supercore 555 horizontal
Headset
CH-6201TBW, 1.5" tapered 1-1/8"
Seatpost
Jovial DP-01Z, 30,9mm
Handlebar
Kalloy HB-RB12W-ENM
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
FSA CK-745/IS
Motor
Brose Drive S Mag 25/90Nm
Shifter
Shimano SLX SL M7100 I Spec EV
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Front suspension
120,0 mm
Frame
Alloy
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
BULLS Eccentric 30
Tires
Schwalbe Smart Sam Performance, HS476, Addix
Rear hub
Shimano FH MT510 B BOOST
Front hub
Shimano HB-MT400

Geometry

Size 41cm 46cm 51cm 56cm
a
Seat tube length
410,0
460,0
510,0
560,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
590,0
605,0
624,0
643,0
d
Head tube length
110,0
110,0
125,0
140,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
0,0
0,0
0,0
0,0
g
Trail
86,0
86,0
85,0
86,0
h
Wheelbase
1159,0
1174,0
1195,0
1215,0
i
Chainstay length
454,0
454,0
454,0
454,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
593,0
593,0
607,0
621,0
l
Reach
418,0
433,0
448,0
463,0
m
Standover height
-
-
-
-
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
706,0
721,0
742,0
762,0
