BULLS Sonic AM-SL S Carbon 2022

E-Bike
MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
19,9 kg
Front travel
140mm
Rear travel
140mm

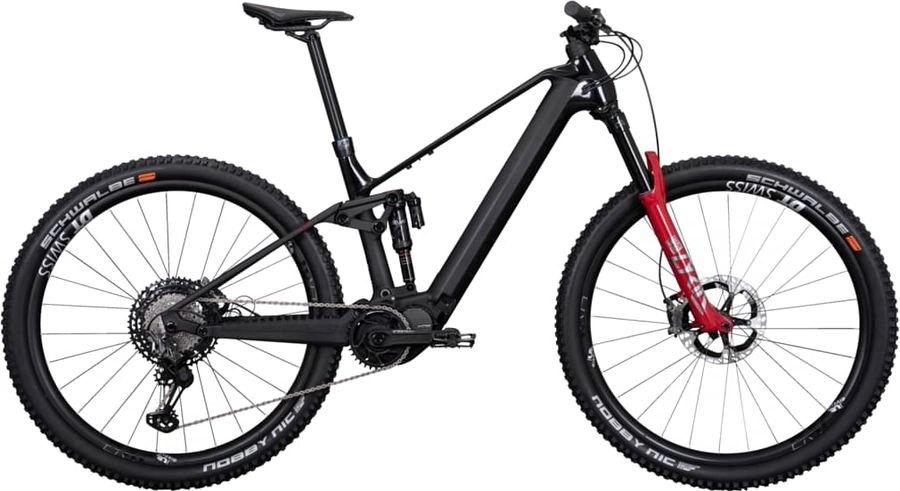

BULLS Sonic AM-SL S Carbon 2022

About the BULLS Sonic AM-SL S Carbon 2022

The BULLS Sonic AM-SL S Carbon 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain. Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 19,9 kg.

Features

The BULLS Sonic AM-SL S Carbon 2022 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Pedals
Wellgo ZZE-01M
Remote
Shimano Steps SC-EM8000
Components
Steam
Poligon BULLS
Brakes
Hydraulische Scheibenbremse
Saddle
Proxim Space NEC Carbon Rail
Battery
Sonic V10 750
Headset
Acros No.4
Seatpost
8pins NGS 2
Handlebar
BULLS Carbon Riser Bar
Drivetrain
Crankset
e*thirteen
Motor
Shimano STEPS EP8 25/85Nm
Shifter
Shimano XTR SL-M9100
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Carbon
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
29 inch
Tires
Schwalbe Nobby Nic Evo

Geometry

Size 40cm 44cm 48cm 51cm
a
Seat tube length
-
440,0
480,0
510,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
592,0
613,0
635,0
657,0
d
Head tube length
120,0
120,0
130,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
0,0
0,0
0,0
0,0
g
Trail
117,0
117,0
117,0
117,0
h
Wheelbase
1194,0
1214,0
1238,0
1262,0
i
Chainstay length
450,0
450,0
450,0
450,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
628,0
628,0
637,0
646,0
l
Reach
430,0
450,0
470,0
490,0
m
Standover height
-
-
-
-
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
746,0
766,0
790,0
814,0
