BULLS Sonic EVO TR 1 29 2022
The BULLS Sonic EVO TR 1 29 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
23,8 kg
Front travel
120mm
Rear travel
120mm

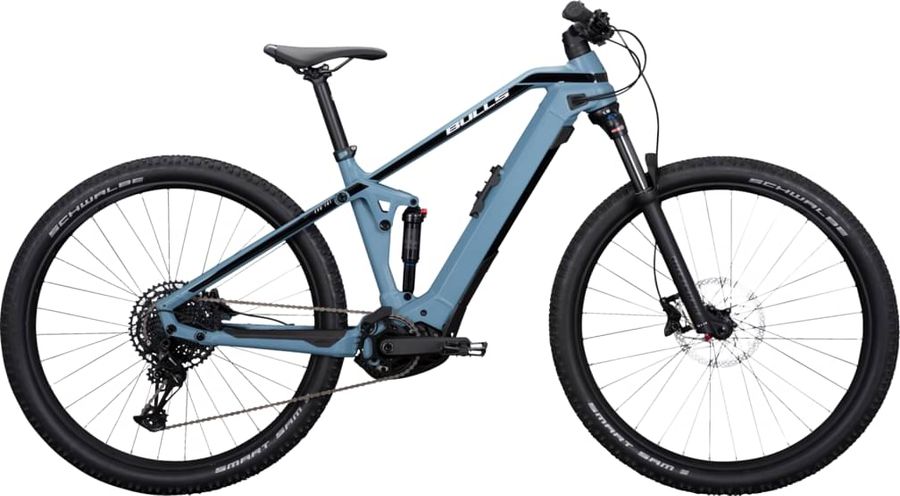

About the BULLS Sonic EVO TR 1 29 2022
The BULLS Sonic EVO TR 1 29 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 23,8 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Pedals
|
Wellgo ZZE-01M
|
|---|---|
|
Remote
|
Bosch Purion LCD
|
|
Steam
|
BULLS The Frog
|
|---|---|
|
Brakes
|
Hydraulische Scheibenbremse
|
|
Saddle
|
Selle Royal Vivo
|
|
Battery
|
Bosch PowerTube 500 Vertikal
|
|
Headset
|
Acros No.1
|
|
Seatpost
|
Promax SP216
|
|
Handlebar
|
BULLS Riser
|
|
Crankset
|
SRAM 34T
|
|---|---|
|
Motor
|
Bosch Performance Line CX 25/85Nm
|
|
Shifter
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM SX PG1210
|
|
Frame
|
Alloy
|
|---|---|
|
Front suspension
|
BULLS Lytro 34 Air
|
|
Rear suspension
|
SR Suntour Edge R
|
|
Rims
|
RODI TRYP30, Hohlkammer
|
|---|---|
|
Tires
|
Schwalbe Smart Sam K-Guard
|
|
Rear hub
|
Shimano Deore FH-MT400
|
|
Front hub
|
Shimano HB-MT400
|
Geometry
| Size | 41cm | 44cm | 48cm | 51cm | 53cm |
|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
480,0
|
510,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
573,0
|
581,0
|
604,0
|
637,0
|
672,0
|
|
d
Head tube length
|
120,0
|
120,0
|
130,0
|
140,0
|
160,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
0,0
|
0,0
|
0,0
|
0,0
|
0,0
|
|
g
Trail
|
97,0
|
97,0
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1174,0
|
1185,0
|
1208,0
|
1242,0
|
1280,0
|
|
i
Chainstay length
|
458,0
|
458,0
|
458,0
|
458,0
|
458,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
619,0
|
620,0
|
629,0
|
639,0
|
657,0
|
|
l
Reach
|
412,0
|
423,0
|
443,0
|
473,0
|
503,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
329,0
|
329,0
|
329,0
|
329,0
|
329,0
|
|
y
Front center
|
720,0
|
731,0
|
754,0
|
787,0
|
825,0
|
