Cannondale Bad Habit 2 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

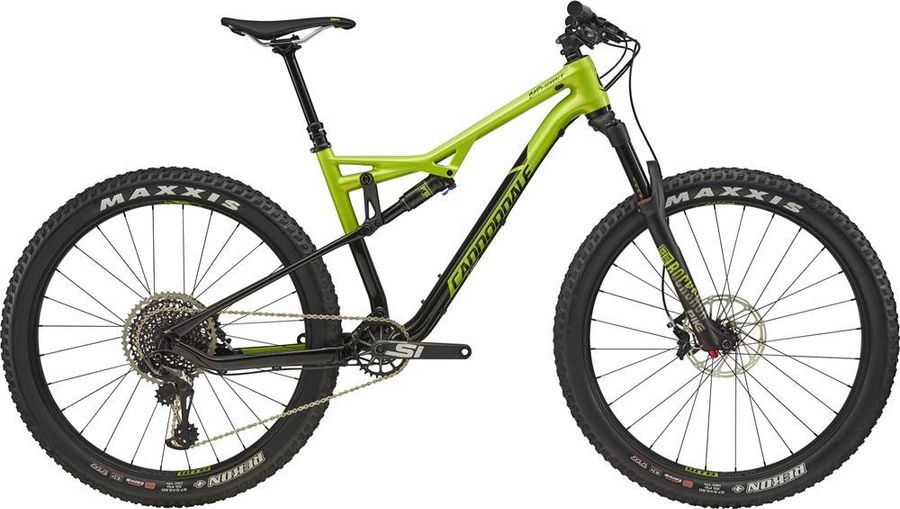

Cannondale Bad Habit 2 2018

About the Cannondale Bad Habit 2 2018

The Cannondale Bad Habit 2 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Bad Habit 2 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Lock-On
Pedals
Not included
Components
Steam
Cannondale C1, 6061 Alloy, 60mm, 31.8, 5°
Saddle
Fabric Scoop Shallow Elite
Headset
Cannondale HeadShok Si
Seatpost
RaceFace Aeffect Dropper, 31.6mm, 125/150mm travel.
Handlebar
Cannondale C3 riser, Alloy, 4° upsweep, 9° backsweep, 760x15mm
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Cannondale Si, BB30 w/ Ai SpideRing, X-Sync®, 30t
Shifter
SRAM GX Eagle 12-speed Trigger
Bottom bracket
Cannondale Alloy PressFit30
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Bad Habit 27+, 120mm, BallisTec Carbon, SmartForm C1 Alloy swingarm, Ai offset, Carbon Link, PF30, Flat Mount Brake, Pivoting Der Hanger, 1.5 Si headtube
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
WTB Scraper i40 TCS 27.5", 40mm inner, Tubeless Ready
Tires
Maxxis Rekon 27.5x2.8" 120 TPI, 3C, EXO Protection, Tubeless Ready
Spokes
DT Swiss Competition
Rear hub
Formula 110x15 w/30mm end caps front, Custom DT-Swiss 370, 148x12 Ai Offset dish - rear straight pull 28 hole rear.
Front hub
Formula 110x15 w/30mm end caps front, Custom DT-Swiss 370, 148x12 Ai Offset dish - rear straight pull 28 hole rear.

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
594,0
620,0
650,0
d
Head tube length
97,0
110,0
122,0
134,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
55,0
55,0
55,0
55,0
g
Trail
91,0
91,0
91,0
91,0
h
Wheelbase
1111,0
1144,0
1171,0
1202,0
i
Chainstay length
443,0
443,0
443,0
443,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
583,0
595,0
607,0
618,0
l
Reach
386,0
415,0
437,0
464,0
m
Standover height
729,0
748,0
750,0
760,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
672,0
705,0
732,0
763,0
