Cannondale Catalyst 4 2017
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
75mm

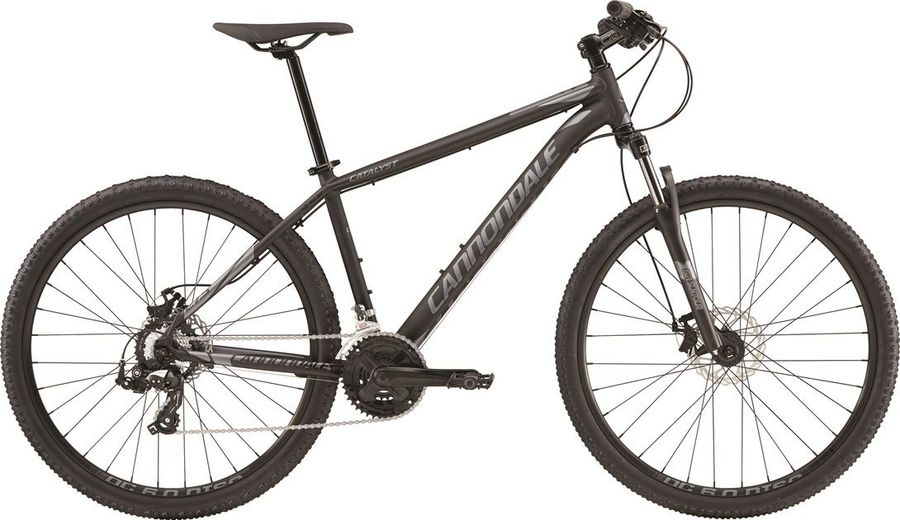

About the Cannondale Catalyst 4 2017
The Cannondale Catalyst 4 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Grip
|
Cannondale Dual-Density
|
|---|---|
|
Pedals
|
Cannondale Platform
|
|
Steam
|
Cannondale C4, 6061 Alloy, 31.8, 7 deg.
|
|---|---|
|
Brakes
|
Jak-7 Cable actuated disc, 160/160mm
|
|
Saddle
|
Cannondale Stage 2
|
|
Headset
|
VP 88, threadless
|
|
Seatpost
|
Cannondale C4, 6061 alloy, 27.2x350mm
|
|
Handlebar
|
Steel, 20mm Rise, 620mm, 6 degrees of sweep
|
|
Brake lever
|
Shimano EF41
|
|
Crankset
|
Prowheel, 24/34/42
|
|---|---|
|
Shifter
|
Shimano EF41 Easyfire
|
|
Bottom bracket
|
VP Cartridge Sealed Bearing, square taper
|
|
Front derailleur
|
Shimano Tourney, 31.8 clamp
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z51
|
|
Cassette
|
Sunrace M2A 14-34T 7-speed
|
|
Frame
|
Catalyst, butted 6061 Alloy, 1-1/8_ head tube, rack and fender mounts, 27.5"
|
|---|---|
|
Front suspension
|
SR Suntour M3030
|
|
Rims
|
Alex DC 6.0, double wall, 32-hole
|
|---|---|
|
Tires
|
Innova 27.5"x2.0"
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Alloy Disc, Freewheel, sealed, loose ball bearings, QR, 32h
|
|
Front hub
|
Alloy Disc, Freewheel, sealed, loose ball bearings, QR, 32h
|
