Cannondale Cujo 1 2017

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

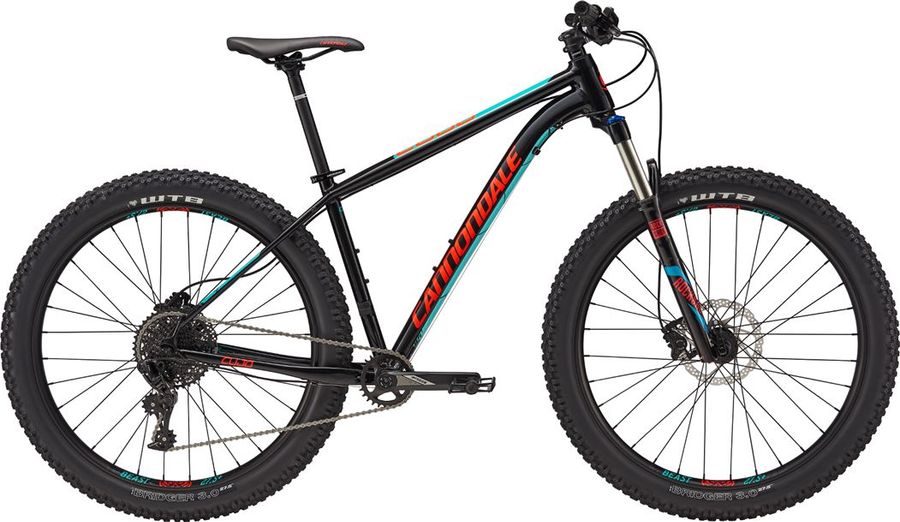

Cannondale Cujo 1 2017

About the Cannondale Cujo 1 2017

The Cannondale Cujo 1 2017 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , hydraulic disc brakes, and tapered head tube.

Features

The Cannondale Cujo 1 2017 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Cannondale Platform
Components
Steam
Cannondale C3, 6061 Alloy, 1-1/8", 31.8, 60mm
Saddle
Cannondale Stage 3
Headset
Tange Seiki Semi-Integrated Tapered
Seatpost
Cannondale C3, 6061 alloy, 27.2x350mm (S,M) 400mm (L,X)
Handlebar
Cannondale C3 riser, Alloy, 4 degree upsweep, 9 degree backsweep, 760x15mm
Brake lever
Shimano Deore
Brakes
Shimano Deore
Drivetrain
Crankset
FSA Comet MegaExo Boost w/ 30T Megatooth narrow/wide chainring
Cassette
SRAM NX, 11-42, 11-speed
Shifter
SRAM GX1, 11-speed
Bottom bracket
FSA MegaExo Boost
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Cujo 27+ , SmartForm C2 Alloy, SAVE, Tapered head tube
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Cannondale Beast, 27.5x40mm inner, tubeless ready
Tires
WTB Ranger Comp, DNA Compound, 27.5x3.0"
Spokes
Stainless, 14g
Rear hub
Formula 110x15 front, Boost QR 141x9mm with HG driver rear
Front hub
Formula 110x15 front, Boost QR 141x9mm with HG driver rear

Geometry

Size XS SM MD LG XL XXL
a
Seat tube length
355,0
385,0
435,0
485,0
535,0
585,0
b
Seat tube angle
73,3º
73,3º
73,3º
73,3º
73,3º
73,3º
c
Top tube length
553,0
577,0
599,0
623,0
643,0
667,0
d
Head tube length
95,0
95,0
115,0
115,0
130,0
130,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
51,0
51,0
g
Trail
91,0
91,0
91,0
91,0
91,0
91,0
h
Wheelbase
1080,0
1104,0
1128,0
1152,0
1173,0
1197,0
i
Chainstay length
448,0
448,0
448,0
448,0
448,0
448,0
j
Bottom bracket drop
62,0
62,0
62,0
62,0
62,0
62,0
k
Stack height
633,0
633,0
651,0
651,0
665,0
665,0
l
Reach
365,0
389,0
405,0
429,0
445,0
469,0
m
Standover height
736,0
752,0
791,0
822,0
858,0
888,0
x
Bottom bracket height
308,0
308,0
308,0
308,0
308,0
308,0
y
Front center
639,0
663,0
687,0
711,0
732,0
756,0
