BikeWise

Cannondale Cujo 1 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm
Cannondale Cujo 1 2019

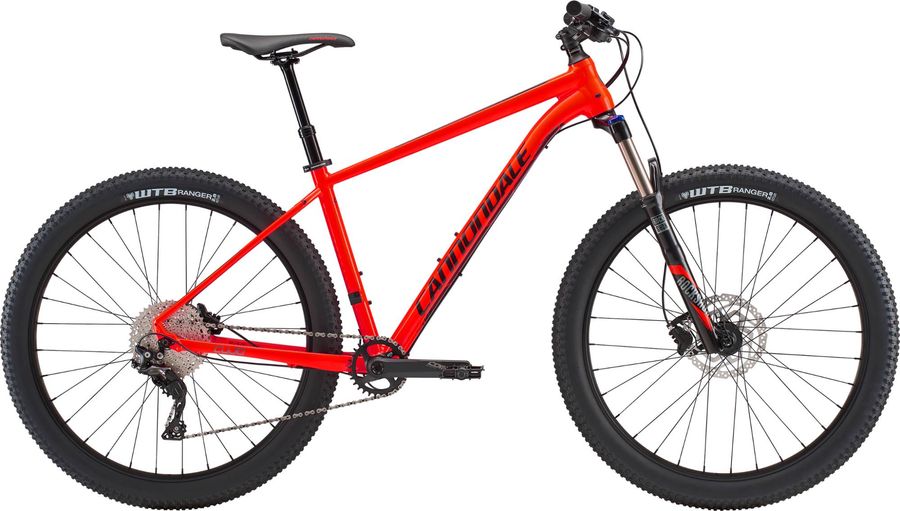

About the Cannondale Cujo 1 2019

The Cannondale Cujo 1 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Cannondale Cujo 1 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Cannondale Platform
Components
Steam
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Saddle
Cannondale Stage 3
Headset
Semi Integrated, 1-1/8 reducer
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M-XL)
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise
Brake lever
Shimano MT400 hydro disc
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA Comet MegaExo, 30T
Shifter
Shimano SLX, 11-speed
Bottom bracket
FSA MegaExo
Cassette
Sunrace MX8 11-42T 11-speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Chain
KMC X11
Frameset
Frame
Cujo 27+, SmartForm C2 Alloy, SAVE, Tapered Headtube, Internal Cable Routing, Flat Mount Brake
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB STX i35 TCS, 32h, tubeless ready
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound
Spokes
Stainless Steel, 14g
Rear hub
Formula 15x110 front, Formula Boost QR rear w/ HG driver
Front hub
Formula 15x110 front, Formula Boost QR rear w/ HG driver

Geometry

Size XS SM MD LG XL
a
Seat tube length
355,0
385,0
435,0
485,0
535,0
b
Seat tube angle
73,3º
73,3º
73,3º
73,3º
73,3º
c
Top tube length
553,0
577,0
599,0
623,0
643,0
d
Head tube length
95,0
95,0
115,0
115,0
130,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
91,0
91,0
91,0
91,0
91,0
h
Wheelbase
1080,0
1104,0
1128,0
1152,0
1173,0
i
Chainstay length
448,0
448,0
448,0
448,0
448,0
j
Bottom bracket drop
62,0
62,0
62,0
62,0
62,0
k
Stack height
633,0
633,0
651,0
651,0
665,0
l
Reach
365,0
389,0
405,0
429,0
445,0
m
Standover height
736,0
752,0
791,0
822,0
858,0
x
Bottom bracket height
308,0
308,0
308,0
308,0
308,0
y
Front center
639,0
663,0
687,0
711,0
732,0
