Cannondale Cujo Neo 130 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

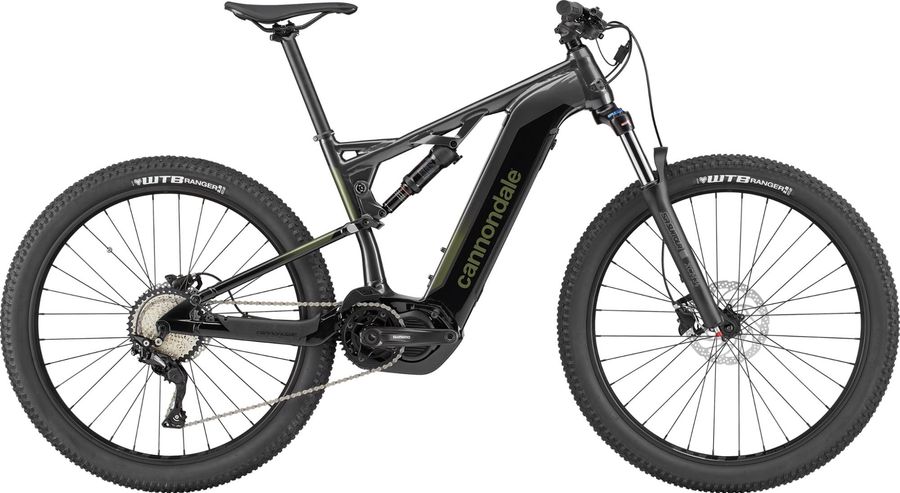

Cannondale Cujo Neo 130 2020

About the Cannondale Cujo Neo 130 2020

The Cannondale Cujo Neo 130 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Cannondale Cujo Neo 130 2020 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Remote
Shimano EW-EN100 Junction Box for bluetooth connection
Components
Steam
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Saddle
Fabric Scoop Shallow Sport, steel rails
Battery
Shimano STEPS BT-E8020, 504Wh
Charger
Shimano STEPS EC-E6000
Headset
Integrated Sealed Bearing, Tapered
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Brake lever
Shimano MT200 hydro disc
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-E8000, 165mm, X-Sync, 34t
Motor
Shimano STEPS DU-E8000 250W
Shifter
Shimano Deore, 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
130mm travel, SmartForm C2 Alloy, removable downtube battery, tapered headtube, 148x12mm thru-axle, alloy skid plate, 130mm travel, Removable downtube battery, Tapered headtube, 148x12mm thru-axle, Alloy skid plate
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
SR Suntour XCM 34
Wheels
Rims
WTB STX i29 TCS, 32h, tubeless ready
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound
Spokes
DT Swiss Champion
Rear hub
Shimano MT400 12x148
Front hub
Shimano MT400 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
-
-
-
-
c
Top tube length
581,0
605,0
635,0
662,0
d
Head tube length
-
-
-
-
e
Head tube angle
-
-
-
-
f
Rake
46,0
46,0
46,0
46,0
g
Trail
-
-
-
-
h
Wheelbase
1142,0
1166,0
1197,0
1225,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
-
-
-
-
k
Stack height
596,1
596,1
603,5
610,9
l
Reach
410,1
434,1
461,9
486,8
m
Standover height
762,0
765,0
765,0
769,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
