Cannondale F-Si Carbon 3 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

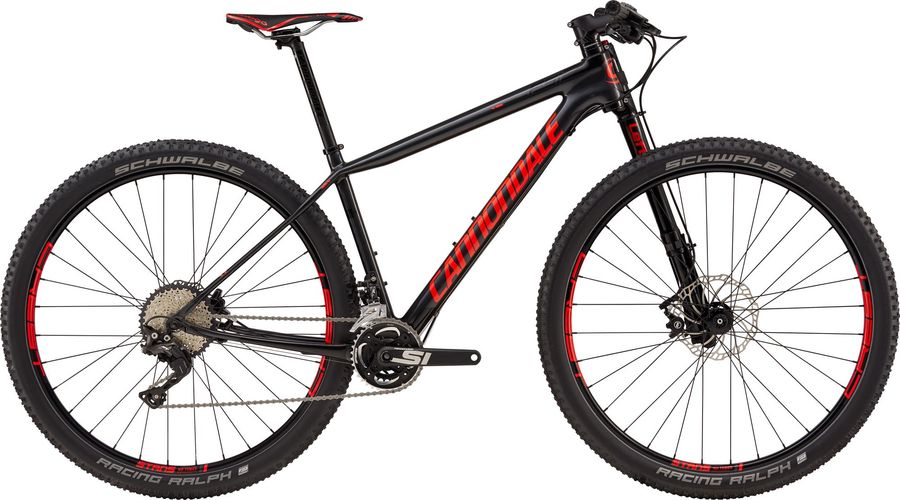

Cannondale F-Si Carbon 3 2018

About the Cannondale F-Si Carbon 3 2018

The Cannondale F-Si Carbon 3 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e tubeless ready.

Features

The Cannondale F-Si Carbon 3 2018 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not included
Components
Steam
Cannondale C1, 6061 Alloy, 1.5", 31.8, -5°
Brakes
Magura MT-RACE w/ Storm SL Rotors, 180/160mm
Saddle
Prologo Zero II STN Rail
Headset
Cannondale HeadShok Si
Seatpost
Cannondale C2, 7075 alloy, 27.2mm x 400mm
Handlebar
Cannondale C2 flat, Butted AL2014 Alloy, 700mm
Brake lever
Magura MT-RACE w/ Carbotecture body, reach adjust, Shiftmix
Drivetrain
Crankset
Cannondale Si, Ai, BB30, FSA 26/36 rings
Shifter
Shimano XT, 2x11
Bottom bracket
Cannondale Alloy PressFit30
Front derailleur
Shimano XT, direct mount
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
F-Si, BallisTec Carbon, SAVE, PF30A, 1.5 Si Head Tube, Ai Offset, 27.5" (S), 29" (M-XL)
Front suspension
Cannondale Lefty 2.0 Alumínio
Wheels
Rims
Stan's NoTubes Crest MK3, Tubeless Ready
Tires
Schwalbe Racing Ralph EVO Performance, 29/27.5x2.1", Tubeless Ready
Spokes
DT-Swiss Competition (Ai Offset dish - Rear)
Rear hub
Lefty 60 front, Custom Formula 1702 (Ai Offset dish - Rear), QR
Front hub
Lefty 60 front, Custom Formula 1702 (Ai Offset dish - Rear), QR

Geometry

Size XS SM MD LG x (2911)
a
Seat tube length
365,0
385,0
435,0
483,0
533,0
b
Seat tube angle
73,4º
73,3º
73,2º
73,1º
73,0º
c
Top tube length
546,0
569,0
595,0
622,0
647,0
d
Head tube length
97,0
97,0
97,0
110,0
122,0
e
Head tube angle
68,9º
69,0º
69,7º
69,8º
69,9º
f
Rake
50,0
50,0
55,0
55,0
55,0
g
Trail
83,0
82,0
79,0
78,0
78,0
h
Wheelbase
1052,0
1073,0
1102,0
1128,0
1151,0
i
Chainstay length
421,0
421,0
434,0
434,0
434,0
j
Bottom bracket drop
45,0
45,0
62,0
62,0
62,0
k
Stack height
569,0
569,0
602,0
614,0
627,0
l
Reach
376,0
398,0
413,0
435,0
455,0
m
Standover height
729,0
736,0
776,0
805,0
836,0
x
Bottom bracket height
308,0
308,0
310,0
310,0
310,0
y
Front center
635,0
656,0
676,0
701,0
724,0
