Cannondale F-Si Hi-MOD 1 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,9 kg
Front travel
100mm
Price
$9,000.00

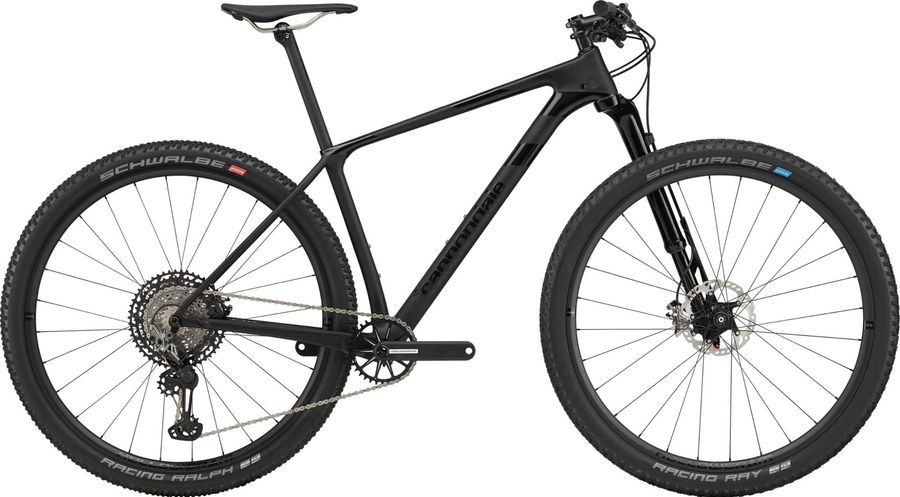

Cannondale F-Si Hi-MOD 1 2020

About the Cannondale F-Si Hi-MOD 1 2020

The Cannondale F-Si Hi-MOD 1 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 148, e-thru axle, and hydraulic disc brakes. The bike weighs approximately 8,9 kg.

Features

The Cannondale F-Si Hi-MOD 1 2020 has 5 features listed below.
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Saddle
Fabric Scoop Flat Race, titanium rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small only)
Seatpost
ENVE Carbon, 27.2 x 400mm, 0mm offset
Handlebar
ENVE M5, Carbon, 760mm, 31.8mm, 5mm rise, 9° sweep
Brake lever
Shimano XTR Race hydro disc
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
HollowGram, BB30 w/X-Sync® SpideRing, 34T, Ai offset
Shifter
Shimano XTR, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Hi-MOD BallisTec Carbon, SAVE, PF30-83, tapered head tube, Speed Release 12mm thru axle, Ai Offset, SAVE, PF30-83, Tapered head tube, Speed Release 12mm thru axle, Ai Offset
Front suspension
Cannondale Lefty Ocho Carbon
Wheels
Rims
HollowGram 23, Superlight Hi-Impact Carbon, tubeless ready, 28h, 23mm inner width
Tires
(F) Schwalbe Racing Ray 27.5/29 x 2.25", Snake Skin, Addix Speedgrip Compound, tubeless ready
Spokes
DT Swiss Competition Race
Rear hub
(R) Hollowgram w/ DT internals 12x148 w/ Micro Spline
Front hub
(F) Lefty 60

Geometry

Size XS SM MD LG XL
a
Seat tube length
330,0
330,0
430,0
480,0
530,0
b
Seat tube angle
73,1º
73,1º
73,1º
73,1º
73,1º
c
Top tube length
551,0
581,0
604,0
627,0
651,0
d
Head tube length
90,0
90,0
101,0
113,0
126,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
50,0
55,0
55,0
55,0
55,0
g
Trail
82,0
82,0
82,0
82,0
82,0
h
Wheelbase
1053,0
1084,0
1108,0
1132,0
1157,0
i
Chainstay length
421,0
425,0
425,0
425,0
425,0
j
Bottom bracket drop
45,0
62,0
62,0
62,0
62,0
k
Stack height
567,0
600,0
610,0
621,0
633,0
l
Reach
378,0
398,0
418,0
438,0
458,0
m
Standover height
713,0
753,0
791,0
826,0
861,0
x
Bottom bracket height
308,0
308,0
308,0
308,0
308,0
y
Front center
636,0
667,0
691,0
714,0
739,0
