Cannondale F-Si Hi-MOD World Cup 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,4 kg
Front travel
100mm

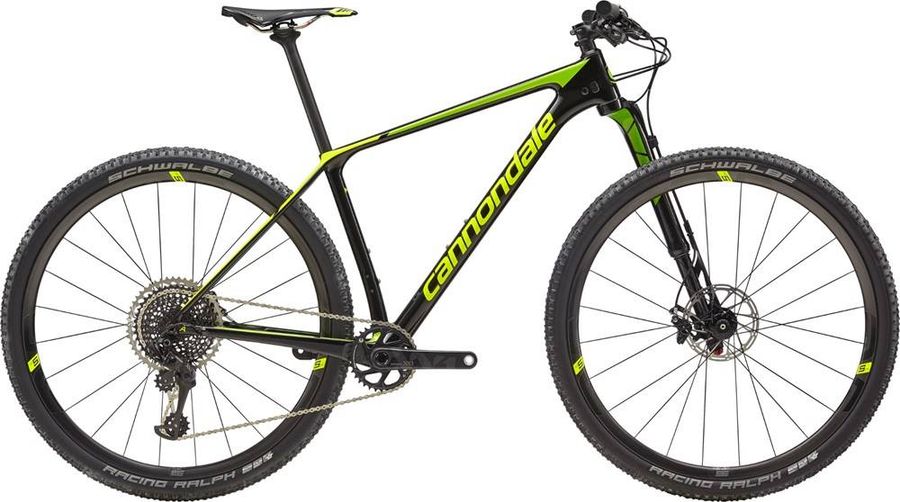

Cannondale F-Si Hi-MOD World Cup 2019

About the Cannondale F-Si Hi-MOD World Cup 2019

The Cannondale F-Si Hi-MOD World Cup 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 148, e-thru axle, and hydraulic disc brakes. The bike weighs approximately 8,4 kg.

Features

The Cannondale F-Si Hi-MOD World Cup 2019 has 5 features listed below.
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale C1, 7075 Alloy, 1-1/8", 31.8, 7-degree
Saddle
Prologo Zero II, Tirox rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small only)
Seatpost
Cannondale C1 Full Carbon, 27.2 x 350/400mm
Handlebar
Cannondale C1 Flat, Carbon, 8-degree sweep, 760mm
Brake lever
SRAM Level Ultimate hydro disc
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Carbon, 34T, Ai Custom
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
F-Si, Hi-MOD BallisTec Carbon, SAVE, PF30A, tapered head tube, Speed Release 12mm thru axle, Ai Offset
Front suspension
Cannondale Lefty Ocho Carbon
Wheels
Rims
ENVE M525 Carbon, 24h, tubeless ready
Tires
Schwalbe Racing Ray 29 x 2.25" front, Racing Ralph 2.25" rear, Snake Skin, Addix Speedgrip Compound, tubeless ready
Spokes
DT Swiss Aerolite (Ai Offset dish - rear)
Rear hub
Lefty 60 front, DT Swiss C36 12x148 rear w/ XD driver
Front hub
Lefty 60 front, DT Swiss C36 12x148 rear w/ XD driver

Geometry

Size XS SM MD LG XL
a
Seat tube length
330,0
330,0
430,0
480,0
530,0
b
Seat tube angle
73,1º
73,1º
73,1º
73,1º
73,1º
c
Top tube length
551,0
581,0
604,0
627,0
651,0
d
Head tube length
90,0
90,0
101,0
113,0
126,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
50,0
55,0
55,0
55,0
55,0
g
Trail
82,0
82,0
82,0
82,0
82,0
h
Wheelbase
1053,0
1084,0
1108,0
1132,0
1157,0
i
Chainstay length
421,0
425,0
425,0
425,0
425,0
j
Bottom bracket drop
45,0
62,0
62,0
62,0
62,0
k
Stack height
567,0
600,0
610,0
621,0
633,0
l
Reach
378,0
398,0
418,0
438,0
458,0
m
Standover height
713,0
753,0
791,0
826,0
861,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
636,0
667,0
691,0
714,0
739,0
