Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Rigid
Weight
13,2 kg

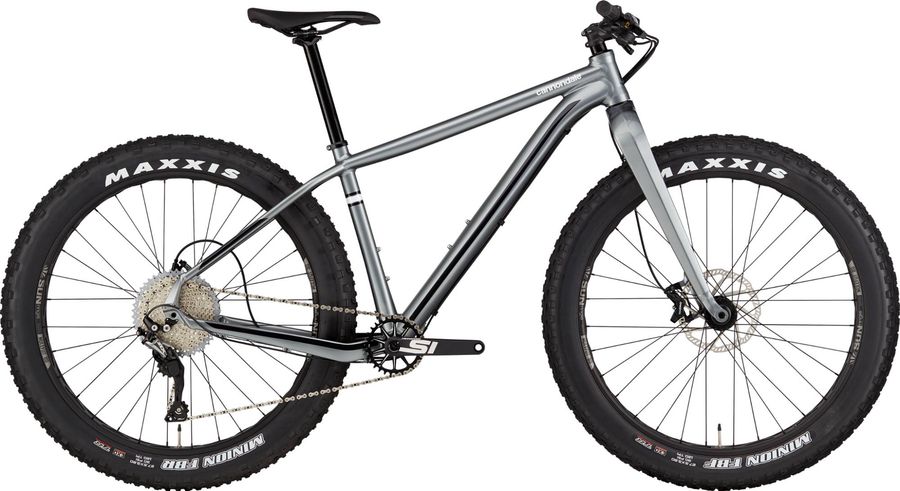

About the Cannondale Fat CAAD 1 2020
The Cannondale Fat CAAD 1 2020 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready. The bike weighs approximately 13,2 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale Locking Grips
|
|---|---|
|
Pedals
|
Not Included
|
|
Steam
|
Cannondale 3, 6061 Alloy, 31.8, 7°
|
|---|---|
|
Brakes
|
Tektro 4-piston hydro disc, 180/160mm rotors
|
|
Saddle
|
Cannondale Stage 3
|
|
Headset
|
Tange Seiki, Integrated, 1-1/8"-1-1/2"
|
|
Seatpost
|
Cannondale 3, 6061 Alloy, 31.6 x 400mm
|
|
Handlebar
|
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
|
|
Brake lever
|
Tektro M745 hydro discc
|
|
Crankset
|
Cannondale 1, BB30, Ai Offset SpideRing, X-Sync®, 30T
|
|---|---|
|
Shifter
|
Shimano SLX, 11-speed
|
|
Bottom bracket
|
Cannondale BB30XL
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-GS
|
|
Cassette
|
Sunrace MX8 11-46T 11-speed
|
|
Chain
|
KMC X11
|
|
Frame
|
SmartForm C1 Alloy, BB30XL, SAVE, 1.5 Si head tube, BB30XL, SAVE, 1.5 Si head tube
|
|---|---|
|
Front suspension
|
Cannondale Fat Rigid
|
|
Rims
|
Sun Ringle Mulefüt 80 SL, tubeless ready
|
|---|---|
|
Tires
|
(F) Maxxis Minion FBF, 27.5 x 3.8", EXO, tubeless ready
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
(R) Sun Ringle SRC 12x197
|
|
Front hub
|
(F) Sun Ringle SRC 15x150
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
370,0
|
390,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
566,0
|
591,0
|
614,0
|
638,0
|
651,0
|
|
d
Head tube length
|
97,0
|
97,0
|
110,0
|
122,0
|
134,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
55,0
|
55,0
|
55,0
|
55,0
|
55,0
|
|
g
Trail
|
87,0
|
87,0
|
87,0
|
87,0
|
87,0
|
|
h
Wheelbase
|
1099,0
|
1124,0
|
1148,0
|
1173,0
|
1187,0
|
|
i
Chainstay length
|
460,0
|
460,0
|
460,0
|
460,0
|
460,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
586,0
|
586,0
|
598,0
|
610,0
|
621,0
|
|
l
Reach
|
388,0
|
413,0
|
433,0
|
453,0
|
463,0
|
|
m
Standover height
|
764,0
|
768,0
|
804,0
|
842,0
|
878,0
|
|
x
Bottom bracket height
|
324,0
|
324,0
|
324,0
|
324,0
|
324,0
|
|
y
Front center
|
645,0
|
670,0
|
695,0
|
719,0
|
733,0
|
