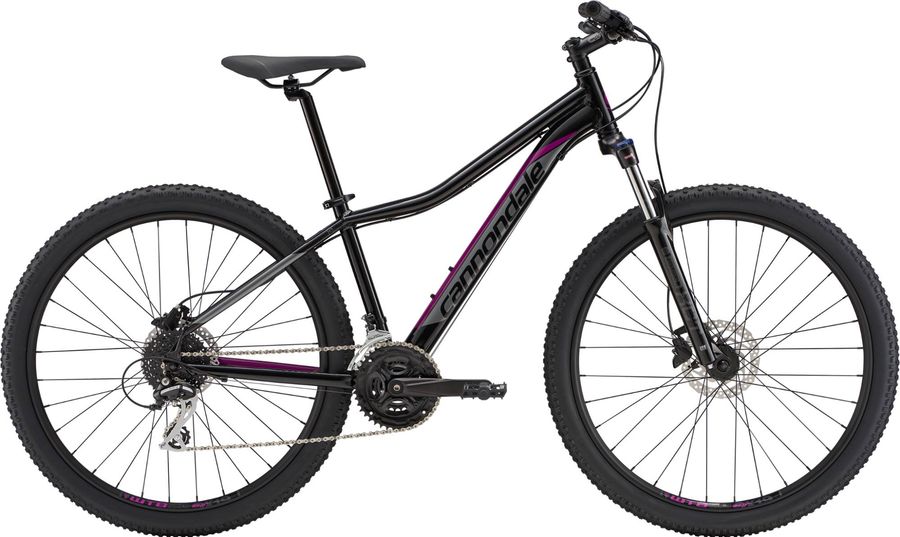

Cannondale Foray 1 2019
The Cannondale Foray 1 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Cannondale Foray 1 2019
The Cannondale Foray 1 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 21 gears (3x7). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Cannondale Dual-Density
|
|---|---|
|
Pedals
|
Cannondale Platform
|
|
Steam
|
Cannondale C4, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
|
|---|---|
|
Saddle
|
Cannondale Stage 2 Women's
|
|
Headset
|
Semi-integrated, threadless, 1-1/8"
|
|
Seatpost
|
Cannondale Alloy, 27.2 x 350mm
|
|
Handlebar
|
Cannondale C4 Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
|
|
Brake lever
|
Shimano EF505
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Prowheel, 42/34/24
|
|---|---|
|
Shifter
|
Shimano Easy Fire EF505, 3x7
|
|
Bottom bracket
|
Sealed Bearing BSA
|
|
Front derailleur
|
Shimano Tourney, 31.8 clamp
|
|
Chain
|
KMC Z51
|
|
Cassette
|
Sunrace M40 11-34T 7-speed
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
Foray, SmartForm C3 Alloy, 1-1/8” head tube, rack and fender mounts, 27.5"
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
WTB SX19, 32h
|
|---|---|
|
Tires
|
Freedom Transition Sport 27.5 x 2.25"
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Formula QR front, QR rear w/ HG driver
|
|
Front hub
|
Formula QR front, QR rear w/ HG driver
|
Geometry
| Size | XS | SM | MD | TL |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
381,0
|
432,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,5º
|
|
c
Top tube length
|
537,0
|
560,0
|
582,0
|
599,0
|
|
d
Head tube length
|
91,0
|
116,0
|
138,0
|
162,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
70,0º
|
|
f
Rake
|
45,0
|
45,0
|
45,0
|
45,0
|
|
g
Trail
|
83,0
|
83,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1036,0
|
1060,0
|
1082,0
|
1102,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
47,0
|
47,0
|
|
k
Stack height
|
581,0
|
604,0
|
627,0
|
650,0
|
|
l
Reach
|
359,0
|
375,0
|
390,0
|
406,0
|
|
m
Standover height
|
632,0
|
674,0
|
715,0
|
756,0
|
|
x
Bottom bracket height
|
305,0
|
305,0
|
305,0
|
305,0
|
|
y
Front center
|
608,0
|
633,0
|
650,0
|
675,0
|
