Cannondale Habit Neo 1 2022

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

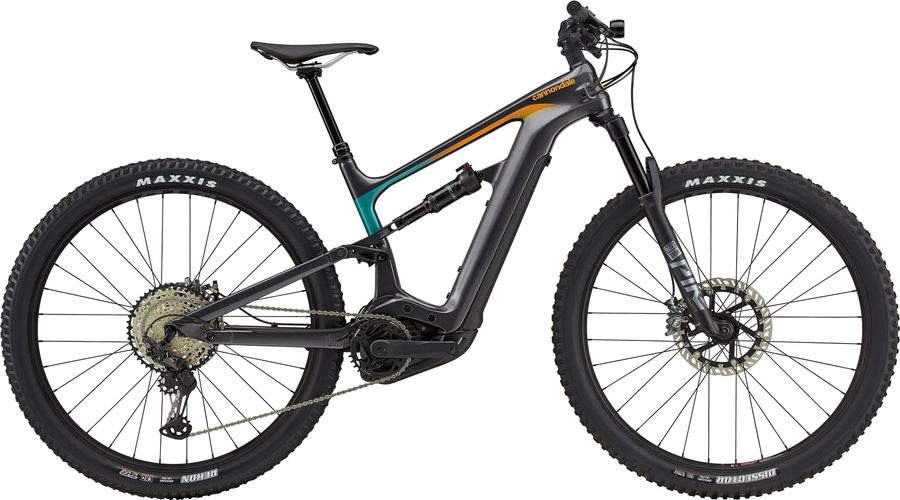

Cannondale Habit Neo 1 2022

About the Cannondale Habit Neo 1 2022

The Cannondale Habit Neo 1 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Cannondale Habit Neo 1 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Fabric FunGuy
Pedals
Not included
Remote
Bosch Kiox
Components
Steam
Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Battery
Bosch PowerTube 625Wh
Charger
Bosch 4A
Headset
Integrated Sealed Bearing, Tapered
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, Drop: 125mm (SM), 150mm (MD, LG, XL)
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Brake lever
Magura MT5 Trail HC hydraulic disc
Brakes
Magura MT5
Drivetrain
Crankset
FSA Bosch E-Bike w/ custom Ai offset, 34T
Motor
Bosch Performance Line CX 250W
Shifter
Shimano XT, 12-speed
Bottom bracket
Cannondale AI, 83mm, press-fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
130mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, alloy skid plate, Ai offset drivetrain
Front suspension
RockShox Pike Select DebonAir 1825 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SEL-B3
Name
Pike Select
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1825
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
WTB KOM Trail i30 TCS, 32h, tubeless ready
Tires
(F) Maxxis Dissector, 29 x 2.6", EXO casing, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", EXO casing tubeless ready
Spokes
DT Swiss Champion
Rear hub
SHIMANO FH-MT510-B
Front hub
Formula DC-511, 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
460,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
587,0
610,0
637,0
665,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1181,0
1205,0
1234,0
1263,0
i
Chainstay length
455,0
455,0
455,0
455,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
605,0
614,0
623,0
633,0
l
Reach
425,0
445,0
470,0
495,0
m
Standover height
536,0
556,0
582,0
612,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
728,0
752,0
781,0
810,0
