Cannondale Habit Women's 2 2018

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm
Cannondale Habit Women's 2 2018

About the Cannondale Habit Women's 2 2018

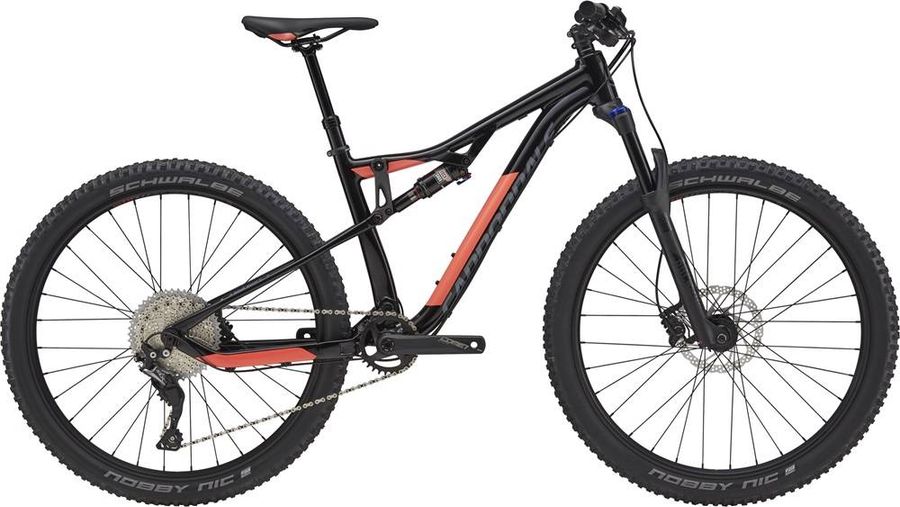

The Cannondale Habit Women's 2 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Cannondale Habit Women's 2 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Women's Locking Grips
Pedals
Not included
Components
Steam
Cannondale C4, 6061 Alloy, 1-1/8", 31.8, 5°
Saddle
Cannondale Stage 3 Women's Ergo
Headset
Tange 1.5 for Tapered Steer tubes
Seatpost
TransX Dropper Post, 31.6, 120mm drop, internal routing
Handlebar
Cannondale C3 riser, Alloy, 4° upsweep, 9° backsweep, 760x15mm
Brake lever
Shimano Deore MT-500 hydro disc
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA Comet MegaExo, 30t, 11-speed
Shifter
Shimano SLX, 11-speed
Bottom bracket
FSA MegaExo
Cassette
Sunrace MX8 11-42T 11-speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Chain
KMC X11
Frameset
Frame
Habit 27.5 Women's, 120mm, SmartForm C1 Alloy, Carbon Link, BB30, Flat Mount Brake, Pivoting Der Hanger, 1.5 Si headtube
Front suspension
RockShox Judy Gold Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
58, 62, 81
Maximum rotor size
185mm, 210mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A3
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
26", 27.5", 29"
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
WTB STP i23 TCS, 32 hole, 23mm inner, Tubeless Ready
Tires
Schwalbe Nobby Nic Performance, 27.5x2.35" F/2.25" R, Tubeless Ready
Spokes
14g Stainless, Black
Rear hub
Formula 110x15 front, Formula with HG driver 142x12 rear
Front hub
Formula 110x15 front, Formula with HG driver 142x12 rear

Geometry

Size PT SM MD
a
Seat tube length
370,0
400,0
440,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
533,0
566,0
598,0
d
Head tube length
97,0
97,0
110,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
50,0
50,0
50,0
g
Trail
85,0
85,0
85,0
h
Wheelbase
1072,0
1105,0
1138,0
i
Chainstay length
433,0
433,0
433,0
j
Bottom bracket drop
19,0
19,0
19,0
k
Stack height
574,0
574,0
586,0
l
Reach
370,0
403,0
431,0
m
Standover height
696,0
726,0
745,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
637,0
670,0
703,0
