Cannondale Habit Women's Carbon 1 2017

Women's Bike
MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

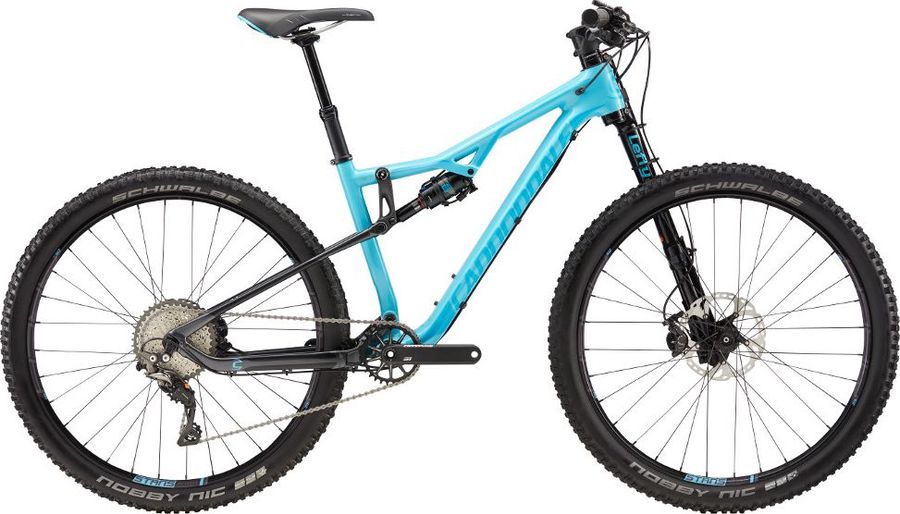

Cannondale Habit Women's Carbon 1 2017

About the Cannondale Habit Women's Carbon 1 2017

The Cannondale Habit Women's Carbon 1 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and remote lockout.

Features

The Cannondale Habit Women's Carbon 1 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Dual Locking Grips
Components
Steam
Cannondale C1, 6061 Alloy, 1.5", 31.8, 5 deg.
Saddle
Fi'zi:k Vesta Mg
Headset
Cannondale HeadShok Si
Seatpost
Fox Transfer dropper, Internal Routing, 31.6, 100mm travel XS/125mm Sm/150mm M
Handlebar
Cannondale C1 riser, carbon, 4 degree upsweep, 9 degree backsweep, 740x15mm
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Cannondale HollowGram Si, BB30 w/ SpideRing, X-Sync®, 30t
Shifter
Shimano XT, 11-speed
Bottom bracket
Cannondale Alloy PressFit30
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Habit 27.5 Women's, 120mm, BallisTec Carbon, Carbon Link, SmartForm C1 Alloy swingarm, PF30, Flat Mount Brake, Pivoting Der Hanger, 1.5 Si headtube
Rear suspension
RockShox Monarch XX 275 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380, 430
Model
RS-MNR-XX-C2
Name
Monarch XX
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
275
Front suspension
Cannondale Lefty 2.0 Alumínio
Wheels
Rims
Stans Arch Ex MK3 32H, 26mm inner 27.5 Tubeless ready
Tires
Schwalbe Nobby Nic SnakeSkin 27.5x2.35 front, 2.25 rear tubeless ready
Spokes
DT Swiss Competition
Rear hub
Lefty 60 front, Formula with HG driver 142x12 rear
Front hub
Lefty 60 front, Formula with HG driver 142x12 rear

Geometry

Size P SM MD
a
Seat tube length
370,0
400,0
440,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
533,0
566,0
598,0
d
Head tube length
97,0
97,0
110,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
50,0
50,0
50,0
g
Trail
85,0
85,0
85,0
h
Wheelbase
1072,0
1105,0
1138,0
i
Chainstay length
433,0
433,0
433,0
j
Bottom bracket drop
19,0
19,0
19,0
k
Stack height
574,0
574,0
586,0
l
Reach
370,0
403,0
431,0
m
Standover height
696,0
726,0
745,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
637,0
670,0
703,0
