BikeWise

Cannondale Jekyll 1 2019

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm
Cannondale Jekyll 1 2019

About the Cannondale Jekyll 1 2019

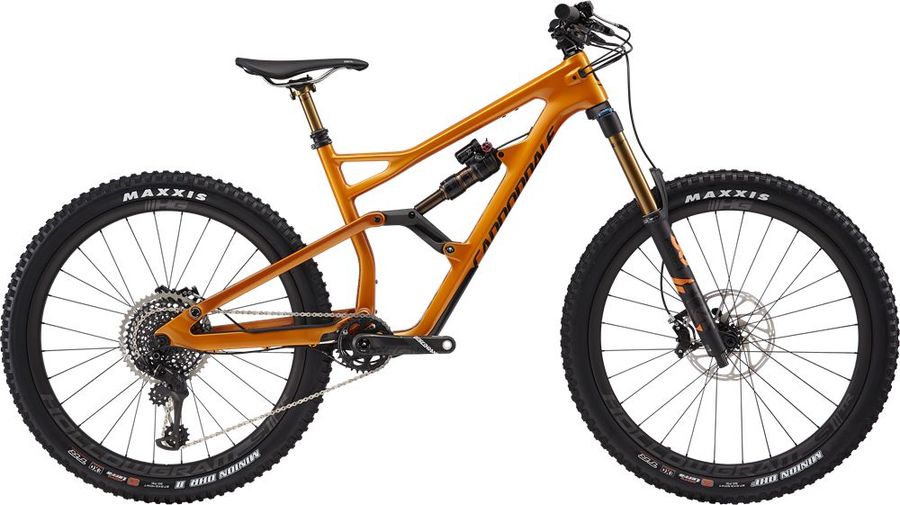

The Cannondale Jekyll 1 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 1 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale C1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°, 35mm
Saddle
Fabric Scoop Shallow Race, ti rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seatpost
Fox Transfer dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Handlebar
Cannondale C1 Riser, Carbon, 15mm rise, 9° sweep, 4° rise, 780mm
Brake lever
SRAM Code RSC hydro disc
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant Carbon, 30T, Ai Custom
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Jekyll, 165mm travel, BallisTec Carbon Frame and Swingarm, carbon shock link, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Cannondale HollowGram 30 Carbon, 30mm ID, tubeless ready
Tires
Maxxis Minion DHF 27.5 x 2.5" front, DHR II 2.4" rear, 3C Compound, EXO puncture protection, tubeless ready
Spokes
HollowGram, double-butted straight pull (Ai Offset dish - rear)
Rear hub
HollowGram 30 - 15x110 front, 12x148 rear, straight pull w/ XD driver
Front hub
HollowGram 30 - 15x110 front, 12x148 rear, straight pull w/ XD driver

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
460,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
584,0
609,0
634,0
662,0
d
Head tube length
102,0
115,0
127,0
140,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1166,0
1193,0
1220,0
1250,0
i
Chainstay length
420,0
420,0
420,0
420,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
590,0
601,0
612,0
624,0
l
Reach
426,0
448,0
470,0
495,0
m
Standover height
750,0
758,0
767,0
775,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
-
-
-
-
