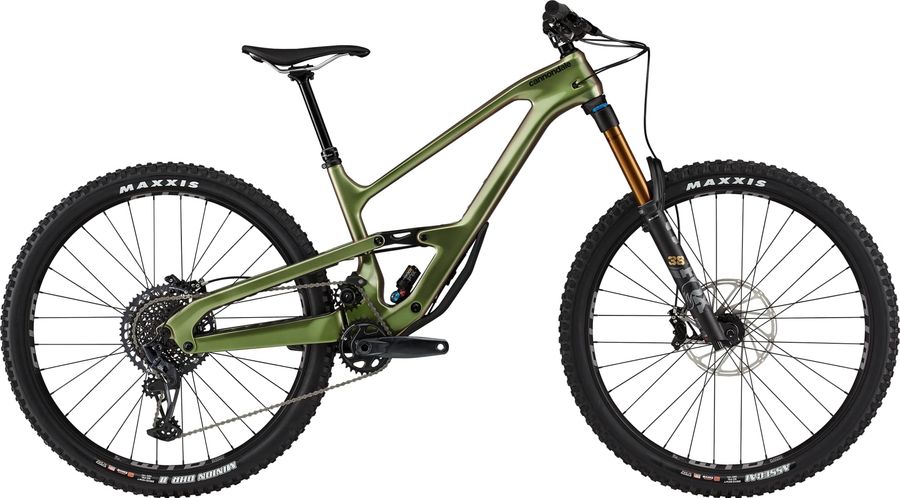

Cannondale Jekyll 1 2021

MTB Enduro

Groupset

SRAM GX

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

170mm

Rear travel

165mm

About the Cannondale Jekyll 1 2021

The Cannondale Jekyll 1 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 1 2021 has 7 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Fabric Funguy
Pedals	Not included

Components
Steam	FSA Grid 35, 35mm
Saddle	Fabric Scoop Shallow Elite, hollow cro-mo rails
Headset	Integrated Sealed Bearing, Tapered
Seatpost	Cannondale DownLow Dropper w/ Matchmaker lever, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Handlebar	Cannondale 1 Riser, Carbon, 30mm rise, 8° sweep, 5° rise, 780mm
Brake lever	SRAM Code RSC hydraulic disc
Brakes	SRAM Code RSC Hydraulic
Application MTB Blade material Aluminum - Forged Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Black Anodized, Black Anodized w/Rainbow Hardware Model DB-CODE-RSC-A1 Name Code RSC Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic

Drivetrain
Crankset	SRAM X1 Eagle B148 CL55, 30T
Shifter	SRAM GX Eagle, 12-speed
Bottom bracket	SRAM DUB BSA MTB73
Cassette	SRAM XG-1275 Eagle 12s
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1275-B1 Name XG-1275 Eagle Cassette Speed 12s Technology cassete XG
Chain	SRAM NX Eagle 252 g
Chain connector PowerLock Chain length links 126 links Color inner link Grey Color outer link Grey Compat speed 12s-Eagle Inner link finish Polished Model CN-EAGL-NX-A1 Name NX Eagle Chain Outer link finish Polished Pin variant Solid Pin Weight based on 114 links Weight 252
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s

Frameset
Frame	All-New, 165mm travel, Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, BSA 73, ISCG05, tapered head tube, Ai Offset
Rear suspension	Fox Float X2 Factory
Front suspension	Fox 38 Float Factory

Wheels
Rims	WTB KOM Trail i30 TCS, 32h, tubeless ready
Tires	(F) Maxxis Assegai, 29 x 2.5", 3C compound, EXO+ puncture protection, tubeless ready, (R) Maxxis Minion DHR II, 29 x 2.4", EXO+, tubeless ready
Spokes	DT Swiss Factory J -Bend
Rear hub	(F) Formula, 15x110mm thru-axle / (R) SRAM MTH 700, 12x148mm, XD Driver
Front hub	(F) Formula, 15x110mm thru-axle / (R) SRAM MTH 700, 12x148mm, XD Driver
