Cannondale Jekyll 2 2017

MTB Enduro

Groupset

SRAM X01 Eagle

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Front travel

170mm

Rear travel

165mm

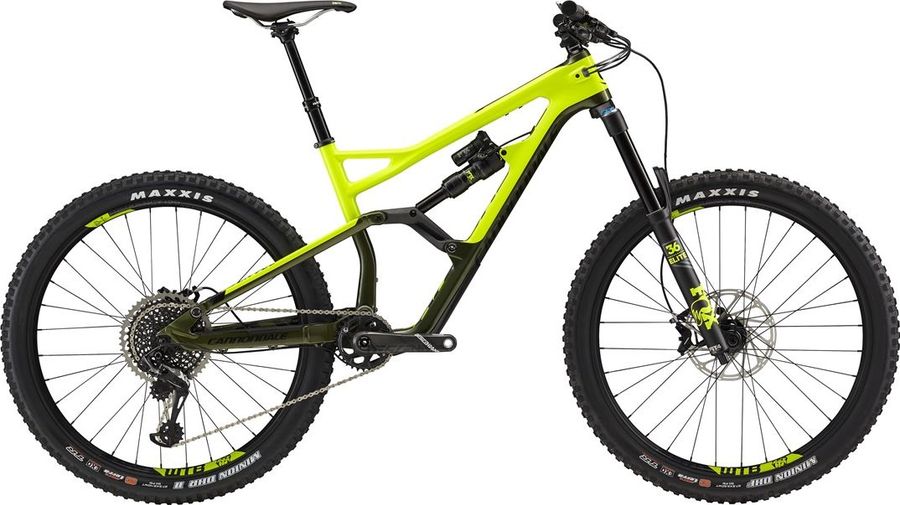

About the Cannondale Jekyll 2 2017

The Cannondale Jekyll 2 2017 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 2 2017 has 6 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Locking Grips

Components
Steam	Cannondale C1, 3D Forged 6061 Alloy, 1-1/8, 31.8, 0°, 35mm
Saddle	Fabric Scoop Shallow Elite with Cromoly rails
Headset	Integrated, 1-1/8 to 1.5, sealed angular contact bearings
Seatpost	RaceFace Turbine dropper, Internal Routing, 31.6, Travel - 125mm SM/150mm M-XL
Handlebar	Cannondale C1 Carbon Riser, 15mm rise, 4° up, 9° back, 31.8, 780mm
Brake lever	SRAM Guide RS w/ cartridge bearing, reach adjust
Brakes	SRAM Guide RS Hydraulic 384 g
Application MTB Blade material Aluminum - Forged, Carbon Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-GDE-RS-B1 Name Guide RS Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 384

Drivetrain
Crankset	TRUVATIV Descendant Carbon Eagle, BB30 w/ custom Ai offset, 30t
Shifter	SRAM X01 Eagle 12-Speed, trigger
Bottom bracket	Cannondale Alloy PressFit30
Chain	SRAM X01 Eagle 239 g
Chain connector PowerLock Chain length links 126 links Color inner link Silver Color outer link Silver Compat speed 12s-Eagle Inner link finish Chrome Plated Model CN-EAGL-X01-A1 Name X01 Eagle Chain Outer link finish Nickel Pin variant Hollow Pin Weight based on 114 links Weight 239
Cassette	SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1295-B1 Name XG-1295 Eagle Cassette Speed 12s Technology cassete XG Weight 350
Rear derailleur	SRAM X01 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar, Red Max tooth 52 Model RD-X0-1-B2 Name X01 Eagle Rear Derailleur Speed 12s

Frameset
Frame	All-New Jekyll, 165mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, carbon shock link, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
Rear suspension	Fox Float DPS Performance Elite EVOL
Front suspension	Fox 36 Float Performance Elite

Wheels
Rims	WTB Frequency Team i29, 29mm inner, TCS Tubeless Ready 27.5, 32h
Tires	Maxxis Minion DHF 27.5x2.5 front, DHR II 2.4 rear, 3C Compound, EXO puncture protection, folding , tubeless ready
Spokes	DT Swiss Competition, 2.0/1.8/2.0
Rear hub	SRAM 900 Boost - 110x15 thru front / 148x12 thru rear w/Ai offset, Maxle Ultimate
Front hub	SRAM 900 Boost - 110x15 thru front / 148x12 thru rear w/Ai offset, Maxle Ultimate
