Cannondale Jekyll 29 -1- 2019

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

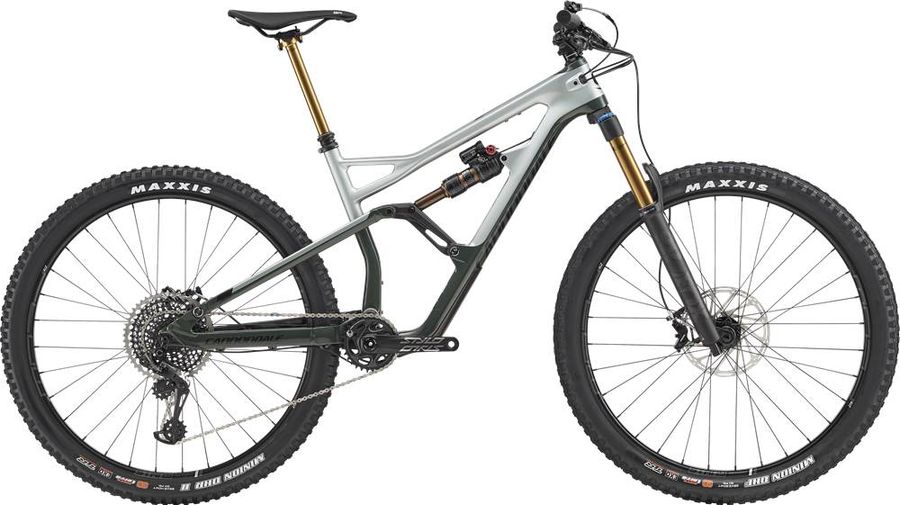

Cannondale Jekyll 29 -1- 2019

About the Cannondale Jekyll 29 -1- 2019

The Cannondale Jekyll 29 -1- 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 29 -1- 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale C1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°, 35mm
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seatpost
Fox Transfer dropper, Kashima coating, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Handlebar
Cannondale C1 Riser, Carbon, 15mm rise, 9° sweep, 4° rise, 780mm
Brake lever
SRAM Code RSC hydro disc
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Stylo 7K, 30T, Ai Custom
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
ALL-NEW Jekyll 29", 150mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Stan's NoTubes Flow MK3, 32h, tubeless ready
Tires
Maxxis Minion DHF 29 x 2.5" WT front, DHR II 2.4" WT rear, 3C Compound, Max EXO puncture protection, tubeless ready
Spokes
DT Swiss Competition (Ai Offset dish - rear)
Rear hub
SRAM 900 15x110 front, SRAM 900 12x148 rear w/ XD driver
Front hub
SRAM 900 15x110 front, SRAM 900 12x148 rear w/ XD driver

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
460,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
586,0
611,0
636,0
664,0
d
Head tube length
102,0
115,0
127,0
140,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
120,0
120,0
120,0
120,0
h
Wheelbase
1189,0
1216,0
1243,0
1273,0
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
16,0
16,0
16,0
16,0
k
Stack height
595,0
606,0
617,0
629,0
l
Reach
419,0
441,0
463,0
488,0
m
Standover height
760,0
766,0
776,0
788,0
x
Bottom bracket height
355,0
355,0
355,0
355,0
y
Front center
747,0
775,0
802,0
832,0
