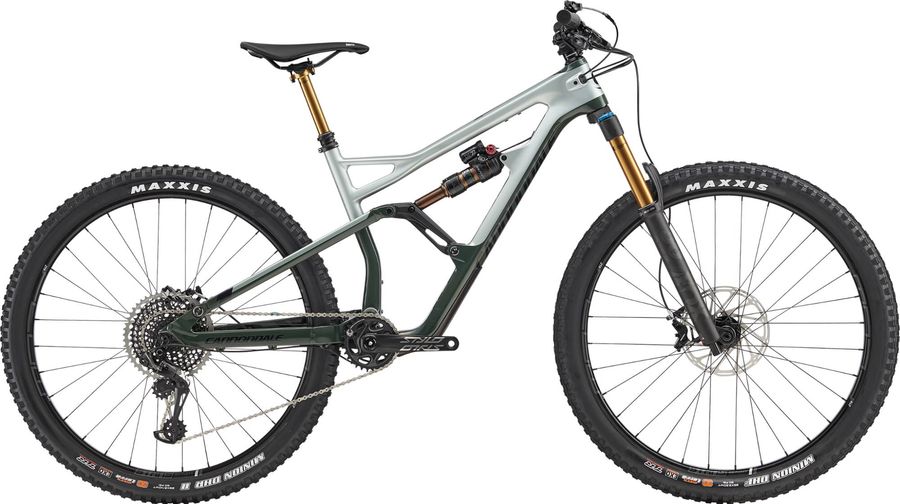

Cannondale Jekyll 29 1 2020

MTB Enduro

Groupset

SRAM X01 Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

150mm

Rear travel

150mm

About the Cannondale Jekyll 29 1 2020

The Cannondale Jekyll 29 1 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 29 1 2020 has 6 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Locking Grips

Components
Steam	Cannondale C1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0Â°, 35mm
Saddle	Fabric Scoop Shallow Elite, cro-mo rails
Seatpost	Fox Transfer dropper, Kashima coating, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Handlebar	Cannondale C1 Riser, Carbon, 15mm rise, 9Â° sweep, 4Â° rise, 780mm
Brake lever	SRAM Code RSC hydro disc
Brakes	SRAM Code RSC Hydraulic
Application MTB Blade material Aluminum - Forged Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Black Anodized, Black Anodized w/Rainbow Hardware Model DB-CODE-RSC-A1 Name Code RSC Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic

Drivetrain
Crankset	Truvativ Stylo 7K, 30T, Ai Custom
Shifter	SRAM X01 Eagle, 12-speed
Bottom bracket	Cannondale Alloy PressFit30
Cassette	SRAM XG-1295 X01 Eagle
Chain	SRAM X01 Eagle 239 g
Chain connector PowerLock Chain length links 126 links Color inner link Silver Color outer link Silver Compat speed 12s-Eagle Inner link finish Chrome Plated Model CN-EAGL-X01-A1 Name X01 Eagle Chain Outer link finish Nickel Pin variant Hollow Pin Weight based on 114 links Weight 239
Rear derailleur	SRAM X01 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar, Red Max tooth 52 Model RD-X0-1-B2 Name X01 Eagle Rear Derailleur Speed 12s

Frameset
Frame	ALL-NEW Jekyll 29", 150mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
Rear suspension	Fox Float DPX2 Factory EVOL
Front suspension	Fox 36 Float Factory Kashima

Wheels
Rims	Stan's NoTubes Flow MK3, 32h, tubeless ready
Tires	Maxxis Minion DHF 29 x 2.5" WT front, DHR II 2.4" WT rear, 3C Compound, Max EXO puncture protection, tubeless ready
Spokes	DT Swiss Competition (Ai Offset dish - rear)
Rear hub	SRAM 900 15x110 front, SRAM 900 12x148 rear w/ XD driver
Front hub	SRAM 900 15x110 front, SRAM 900 12x148 rear w/ XD driver
