Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

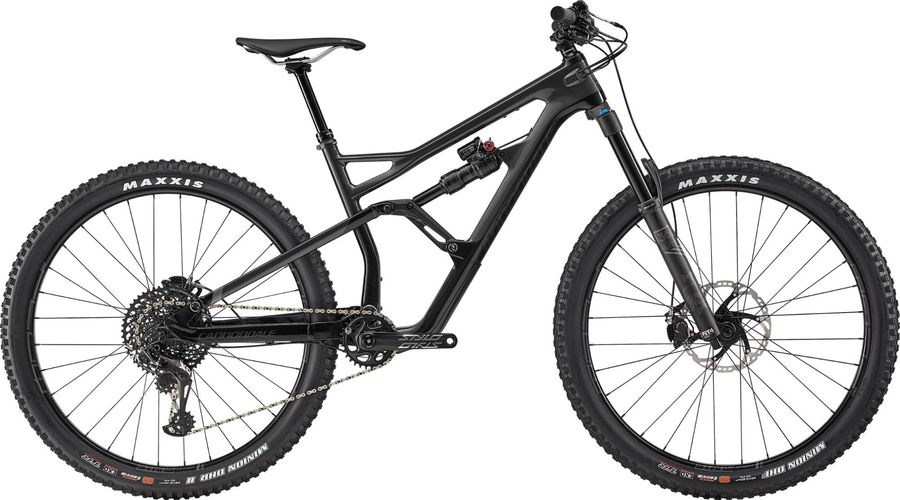

About the Cannondale Jekyll 29 2 2019
The Cannondale Jekyll 29 2 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale Locking Grips
|
|---|---|
|
Pedals
|
Not Included
|
|
Steam
|
Cannondale C1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°, 35mm
|
|---|---|
|
Saddle
|
Fabric Scoop Shallow Elite, cro-mo rails
|
|
Headset
|
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
|
|
Seatpost
|
Cannondale DownLow Dropper Post, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L-XL)
|
|
Handlebar
|
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
|
|
Brake lever
|
Shimano XT hydro disc
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
Truvativ Stylo 7K, 30T, Ai Custom
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed
|
|
Bottom bracket
|
Cannondale Alloy PressFit30
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle Cassette
12s
357 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
ALL-NEW Jekyll 29", 150mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
|
|---|---|
|
Rear suspension
|
Fox Float Performance Elite DPX2 EVOL
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
Stan's NoTubes Flow MK3, 32h, tubeless ready
|
|---|---|
|
Tires
|
Maxxis Minion DHF 29 x 2.5" WT front, DHR II 2.4" WT rear, 3C Maxx Terra Compound, EXO puncture protection, tubeless ready
|
|
Spokes
|
DT Swiss Champion (Ai Offset dish - rear)
|
|
Rear hub
|
Formula 15x110 front, SRAM 900 12x148 rear w/ XD driver
|
|
Front hub
|
Formula 15x110 front, SRAM 900 12x148 rear w/ XD driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
430,0
|
460,0
|
520,0
|
|
b
Seat tube angle
|
-
|
-
|
-
|
-
|
|
c
Top tube length
|
586,0
|
611,0
|
636,0
|
664,0
|
|
d
Head tube length
|
102,0
|
115,0
|
127,0
|
140,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
120,0
|
120,0
|
120,0
|
120,0
|
|
h
Wheelbase
|
1189,0
|
1216,0
|
1243,0
|
1273,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
16,0
|
16,0
|
16,0
|
16,0
|
|
k
Stack height
|
595,0
|
606,0
|
617,0
|
629,0
|
|
l
Reach
|
419,0
|
441,0
|
463,0
|
488,0
|
|
m
Standover height
|
760,0
|
766,0
|
776,0
|
788,0
|
|
x
Bottom bracket height
|
355,0
|
355,0
|
355,0
|
355,0
|
|
y
Front center
|
747,0
|
775,0
|
802,0
|
832,0
|
