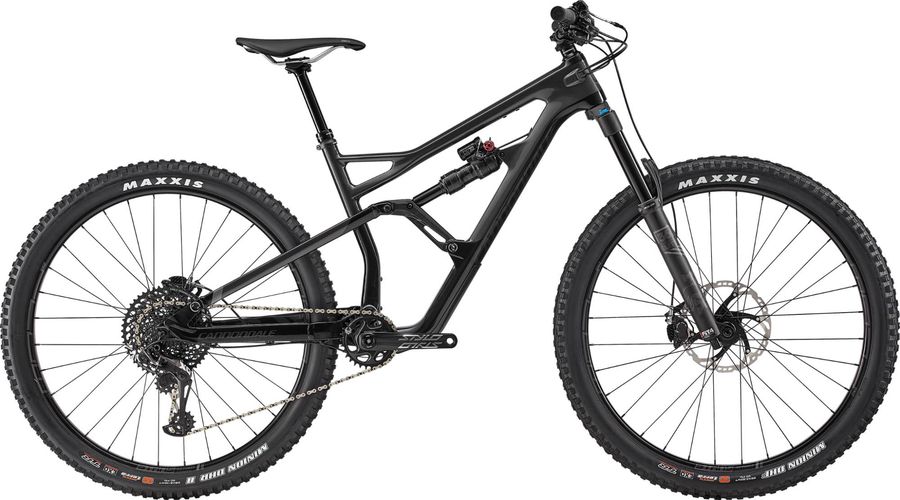

Cannondale Jekyll 29 2 2020

MTB Enduro

Groupset

SRAM X01 Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

150mm

Rear travel

150mm

About the Cannondale Jekyll 29 2 2020

The Cannondale Jekyll 29 2 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 29 2 2020 has 6 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Locking Grips

Components
Steam	Cannondale C1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0Â°, 35mm
Saddle	Fabric Scoop Shallow Elite, cro-mo rails
Seatpost	Cannondale DownLow Dropper Post, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L-XL)
Handlebar	Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8Â° sweep, 4Â° rise, 780mm
Brake lever	Shimano XT hydro disc
Brakes	Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g) 403 (BL-M8000) Brake hose color kit Black Brake hose kit SM-BH90-SB Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper Model BR-M8000 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option G04S Metal Pad option J04C Metal Pad standard G02A Resin G03A Resin Pad standard J02A Resin J03A Resin Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8000 BL-T8000 Recommended disc brake rotor RT-MT800 SM-RT86

Drivetrain
Crankset	Truvativ Stylo 7K, 30T, Ai Custom
Shifter	SRAM GX Eagle, 12-speed
Bottom bracket	Cannondale Alloy PressFit30
Chain	SRAM GX Eagle 244 g
Chain connector PowerLock Chain length links 126 links Color inner link Black Color outer link Silver Compat speed 12s-Eagle Inner link finish Black Oxide Model CN-EAGL-GX-A1 Name GX Eagle Chain Outer link finish Nickel Pin variant Solid Pin Weight based on 114 links Weight 244
Cassette	SRAM XG-1295 Eagle Cassette 12s 357 g
Cog finish cassete Black Cog sizes 10-50t:10,12,14,16,18,21,24,28,32,36,42,50 Gearing 10-50t Model CS-XG-1295-A1 Name XG-1295 Eagle Cassette Speed 12s Technology cassete XG Weight 357
Rear derailleur	SRAM X01 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar, Red Max tooth 52 Model RD-X0-1-B2 Name X01 Eagle Rear Derailleur Speed 12s

Frameset
Frame	ALL-NEW Jekyll 29", 150mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
Rear suspension	Fox Float Performance Elite DPX2 EVOL
Front suspension	Fox 36 Float Performance

Wheels
Rims	Stan's NoTubes Flow MK3, 32h, tubeless ready
Tires	Maxxis Minion DHF 29 x 2.5" WT front, DHR II 2.4" WT rear, 3C Maxx Terra Compound, EXO puncture protection, tubeless ready
Spokes	DT Swiss Champion (Ai Offset dish - rear)
Rear hub	Formula 15x110 front, SRAM 900 12x148 rear w/ XD driver
Front hub	Formula 15x110 front, SRAM 900 12x148 rear w/ XD driver
