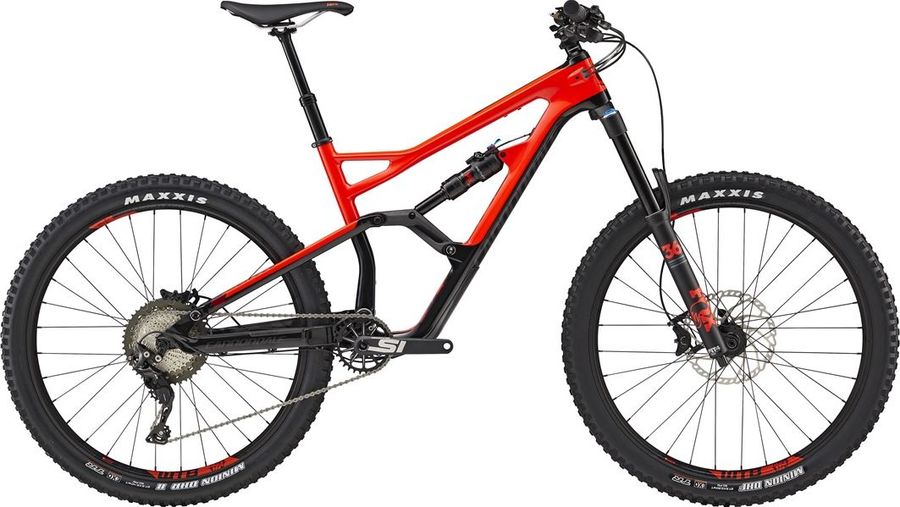

Cannondale Jekyll 3 2017

MTB Enduro

Groupset

Shimano XT

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Front travel

170mm

Rear travel

165mm

About the Cannondale Jekyll 3 2017

The Cannondale Jekyll 3 2017 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 3 2017 has 6 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Locking Grips

Components
Steam	Cannondale C3, 6061 Alloy, 1-1/8, 31.8, 0°, 35mm
Saddle	Fabric Radius Scoop
Headset	Integrated, 1-1/8 to 1.5, sealed angular contact bearings
Seatpost	TransX dropper, Internal Routing, 31.6, 120mm drop
Handlebar	Cannondale C3 Riser, 6061 Alloy, 15mm rise, 4° up, 9° back, 31.8, 780mm
Brake lever	Shimano SLX hydro disc
Brakes	Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g) 425 (BL-M7100) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M7100 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option J03A Resin (w/ fin) Pad option J04C Metal (w/ fin) Pad standard G03S Resin (w/o fin) Pad standard G04S Metal (w/o fin) Pad mount Pad axle Piston 2 Piston material Ceramic

Drivetrain
Crankset	Cannondale Si, BB30, SpideRing 30T, Ai offset
Shifter	Shimano SLX, 11-Speed
Bottom bracket	Cannondale Alloy PressFit30
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano Deore XT CS-M8000 HG
Aluminum gear pieces 2 Aluminum spider arm finish Anodized Aluminum spider arm pieces 2 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Anodized Lock ring material Aluminum Model CS-M8000 Steel gear finish Shot-Ni Steel gear pieces 9 Type HG Weights 11-40T: 411g 11-42T: 434g 11-46T: 437g
Chain	Shimano CN-HG601 257 g
Average weight (g) 257 Chromizing treatment roller link pin Model CN-HG601-11 Pin link plate Gray Roller link plate SIL-TEC Type HG-X11

Frameset
Frame	All-New Jekyll, 165mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, carbon shock link, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
Rear suspension	Fox Float DPS Performance EVOL
Front suspension	Fox 36 Float Performance

Wheels
Rims	WTB Frequency Race i29, 29mm inner, TCS Tubeless Ready 27.5, 32h
Tires	Maxxis Minion DHF 27.5x2.5 front, DHR II 2.4 rear, Dual Compound, folding, tubeless ready
Spokes	DT Swiss Champion 2.0
Rear hub	Formula w/ HG driver - 110x15 thru front / 148x12 thru rear w/Ai offset
Front hub	Formula w/ HG driver - 110x15 thru front / 148x12 thru rear w/Ai offset
