Cannondale Jekyll 3 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm

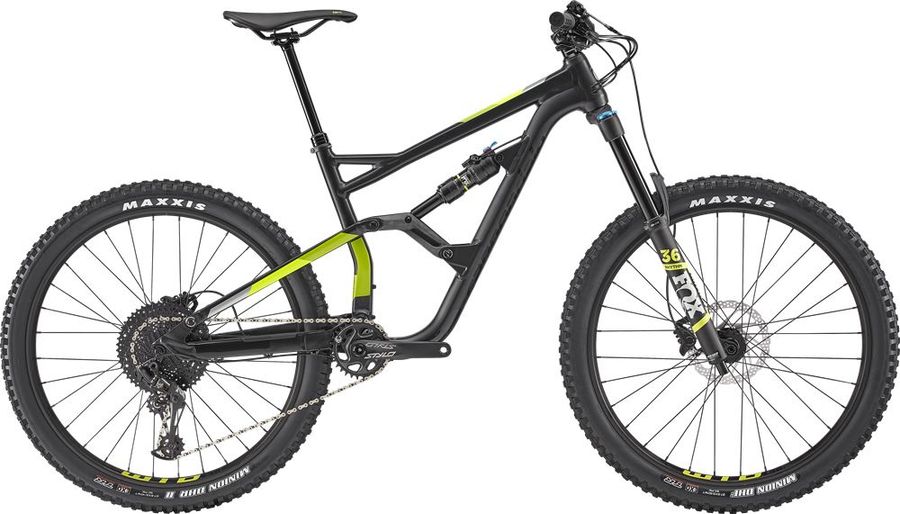

Cannondale Jekyll 3 2019

About the Cannondale Jekyll 3 2019

The Cannondale Jekyll 3 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Jekyll 3 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°, 35mm
Saddle
Fabric Scoop Shallow Sport, steel rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M-XL)
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Brake lever
Shimano MT500 hydro disc
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K, 30T, Ai Custom
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
Cannondale BB30
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Jekyll, 165mm travel, SmartForm C1 Alloy, carbon shock link, Ai offset drivetrain, ISCG05, BB30, flat mount brake, tapered headtube
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
WTB ST i29 TCS, 32h, tubeless ready
Tires
Maxxis Minion DHF 27.5 x 2.5" front, DHR II 2.4" rear, EXO puncture protection, tubeless ready
Spokes
DT Swiss Champion (Ai Offset dish - rear)
Rear hub
Formula 15x110 front, 12x148 rear w/ HG driver
Front hub
Formula 15x110 front, 12x148 rear w/ HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
460,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
584,0
609,0
634,0
662,0
d
Head tube length
102,0
115,0
127,0
140,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1166,0
1193,0
1220,0
1250,0
i
Chainstay length
420,0
420,0
420,0
420,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
590,0
601,0
612,0
624,0
l
Reach
426,0
448,0
470,0
495,0
m
Standover height
750,0
758,0
767,0
775,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
-
-
-
-
