Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm

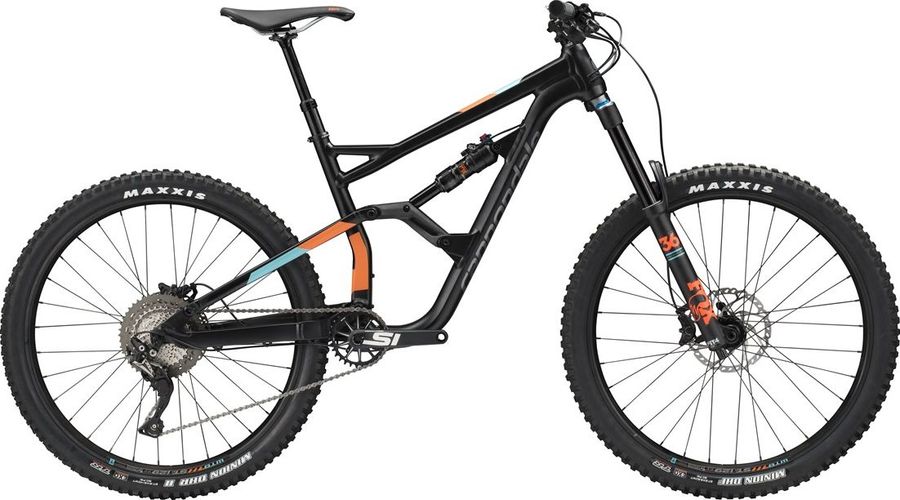

About the Cannondale Jekyll 4 2017
The Cannondale Jekyll 4 2017 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale Locking Grips
|
|---|
|
Steam
|
Cannondale C3, 6061 Alloy, 1-1/8, 31.8, 0°, 35mm
|
|---|---|
|
Saddle
|
Fabric Radius Scoop
|
|
Headset
|
Integrated, 1-1/8 to 1.5, sealed angular contact bearings
|
|
Seatpost
|
TransX dropper, Internal Routing, 31.6, 120mm drop
|
|
Handlebar
|
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 4° up, 9° back, 31.8, 780mm
|
|
Brake lever
|
Shimano Deore
|
|
Brakes
|
Shimano Deore
|
|
Crankset
|
Cannondale Si, BB30, SpideRing 30T, Ai offset
|
|---|---|
|
Shifter
|
Shimano SLX, 11-Speed
|
|
Bottom bracket
|
Cannondale BB30
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-GS
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
KMC X11
|
|
Frame
|
All-New Jekyll, 165mm travel, SmartForm C1 Alloy, carbon shock link, Ai offset drivetrain, ISCG05, BB30, flat mount brake, tapered headtube
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
WTB STP i25, 25mm inner, TCS Tubeless Ready 27.5, 32h
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.5 front, DHR II 2.4 rear, Dual Compound, folding, tubeless ready
|
|
Spokes
|
DT Swiss Champion 2.0
|
|
Rear hub
|
Formula w/ HG driver - 110x15 thru front / 148x12 thru rear w/Ai offset
|
|
Front hub
|
Formula w/ HG driver - 110x15 thru front / 148x12 thru rear w/Ai offset
|
