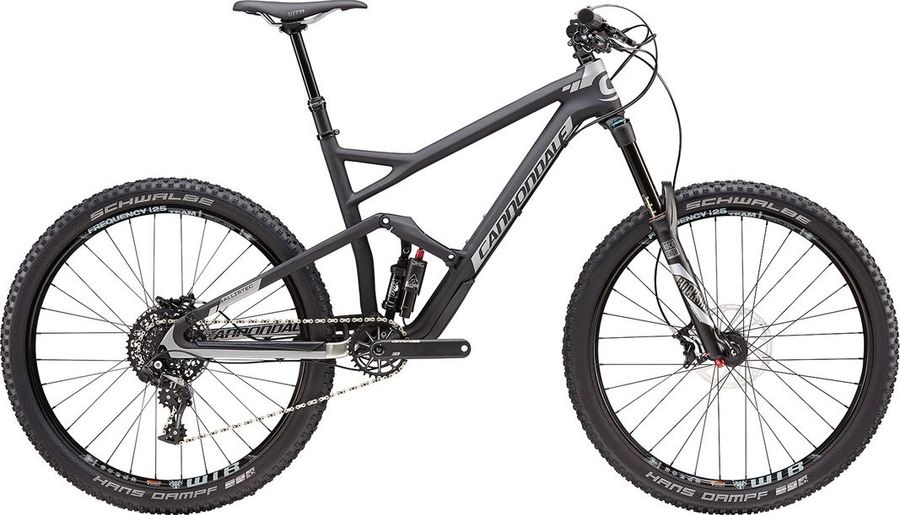

Cannondale Jekyll Carbon 2 2017

MTB Cross Country

Groupset

SRAM X01

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Front travel

160mm

Rear travel

95mm

About the Cannondale Jekyll Carbon 2 2017

The Cannondale Jekyll Carbon 2 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 11 gears (1x11). Its features include dropper seatpost, e-thru axle, and hydraulic disc brakes.

Features

The Cannondale Jekyll Carbon 2 2017 has 5 features listed below.

Dropper seatpost More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Dual Locking Grips

Components
Steam	FSA Gravity Light, 1.5", 31.8, 5 deg.
Saddle	WTB Silverado Team , CroMo
Headset	Tange Seiki 1-1/8 to 1.5", integrated
Seatpost	KS LEV Integra dropper, internal routing, 31.6, 125mm (S,M) 150mm (L,X) travel
Handlebar	Cannondale C1 riser, carbon, 4 degree upsweep, 9 degree backsweep, 780x15mm
Brake lever	SRAM Guide RS w/cartridge bearing, reach adjust
Brakes	SRAM Guide RS Hydraulic 384 g
Application MTB Blade material Aluminum - Forged, Carbon Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-GDE-RS-B1 Name Guide RS Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 384

Drivetrain
Crankset	Cannondale HollowGram Si, hollow forged, BB30, 30t SpideRing
Shifter	SRAM X1
Bottom bracket	Cannondale BB30
Rear derailleur	SRAM X01 11s 250 g
Cable pull ratio X-actuation Cage Long, n/a Cage material Aluminum, Carbon Color Black, Blue, Green, Red Max tooth 42 Model RD-X0-1-A2 Name X01® X-HORIZON™ Rear Derailleur Pulley bearings material Steel Speed 11s Weight 250
Chain	SRAM PC-X1
Cassette	SRAM XG-1180 MINI CLUSTER Cassette 11s
Cog finish cassete Black Cog sizes 10-42t:10,12,14,16,18,21,24,28,32,36,42 Gearing 10-42t Model CS-XG-1180-A1 Name XG-1180 MINI CLUSTER Cassette Speed 11s Technology cassete XG

Frameset
Frame	Jekyll 27.5(650b), 160/95mm, BallisTec Hi-MOD Carbon, BB30, ISCG03, 1.5 Si headtube
Rear suspension	Fox DYAD RT2
Front suspension	RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color Diffusion Black, Gloss Black, Gloss White Damper type Charger, n/a fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29") Maximum rotor size 203mm Minimum rotor size 160mm Model FS-PIKE-RCT3-A2 Name Pike RCT3 Spring Dual Position Air, Solo Air Travel (mm) 110mm, 120mm, 130mm, 140mm, 150mm, 160mm Upper tube type 35mm tapered wall aluminum Weight based on 26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate Weight 1835 Wheel size 26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+

Wheels
Rims	WTB Frequency Team i25 TCS Tubeless Ready 27.5"
Tires	Schwalbe Hans Dampf 27.5 x2.35 Snakeskin TL Ready Performance Folding
Spokes	DT Swiss Competition
Rear hub	Formula, DC81 15mm thru axle front, DCL361 142x12mm rear
Front hub	Formula, DC81 15mm thru axle front, DCL361 142x12mm rear
