Cannondale Jekyll Carbon 29 1 2020

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14 kg
Front travel
150mm
Rear travel
150mm

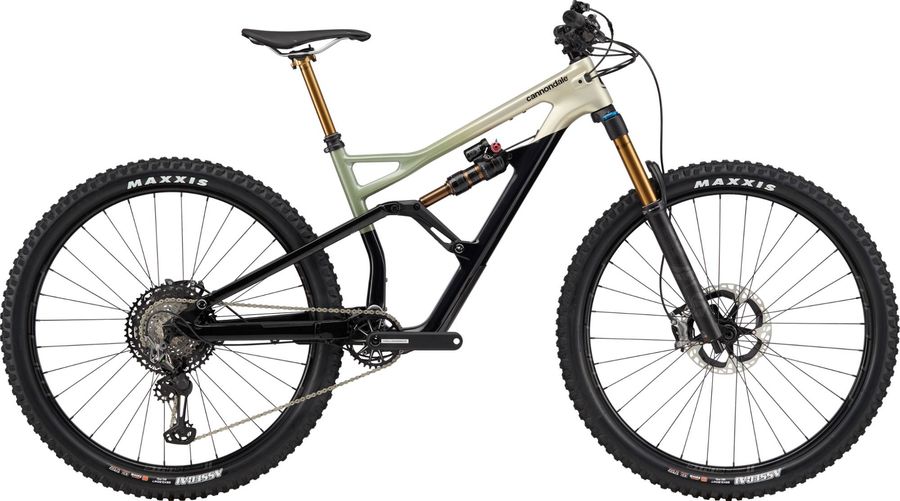

Cannondale Jekyll Carbon 29 1 2020

About the Cannondale Jekyll Carbon 29 1 2020

The Cannondale Jekyll Carbon 29 1 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14 kg.

Features

The Cannondale Jekyll Carbon 29 1 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Fabric Funguy Locking Grips
Pedals
Not Included
Components
Steam
Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seatpost
Fox Factory Transfer Dropper, internal routing, 31.6, 100mm (S), 150mm (M-XL)
Handlebar
Cannondale 1 Riser, Carbon, 15mm rise, 9° sweep, 4° rise, 780mm
Brake lever
Shimano XTR Trail hydro disc
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
HollowGram, BB30 w/ X-Sync® SpideRing, 30T, Ai offset
Shifter
Shimano XT, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, 150mm travel, Ai offset drivetrain, ISCG05, PF30-83, flat mount brake, tapered headtube, 150mm travel, Ai offset drivetrain, ISCG05, PF30-83, Flat mount brake, Tapered headtube
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Stan's NoTubes Flow MK3, 32h, tubeless ready
Tires
Maxxis Assegai, 29 x 2.5", 3C Compound, Max EXO puncture protection, tubeless ready
Spokes
DT Swiss Competition, straight pull (Ai Offset dish - rear)
Rear hub
DT 350 12x148 w/ Micro Spline
Front hub
DT 350 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
460,0
520,0
b
Seat tube angle
-
-
-
-
c
Top tube length
586,0
611,0
636,0
664,0
d
Head tube length
102,0
115,0
127,0
140,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
130,0
130,0
130,0
130,0
h
Wheelbase
1179,0
1207,0
1234,0
1264,0
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
k
Stack height
598,0
610,0
621,0
633,0
l
Reach
419,0
440,0
462,0
487,0
m
Standover height
760,0
766,0
776,0
788,0
x
Bottom bracket height
360,0
360,0
360,0
360,0
y
Front center
738,0
765,0
792,0
823,0
