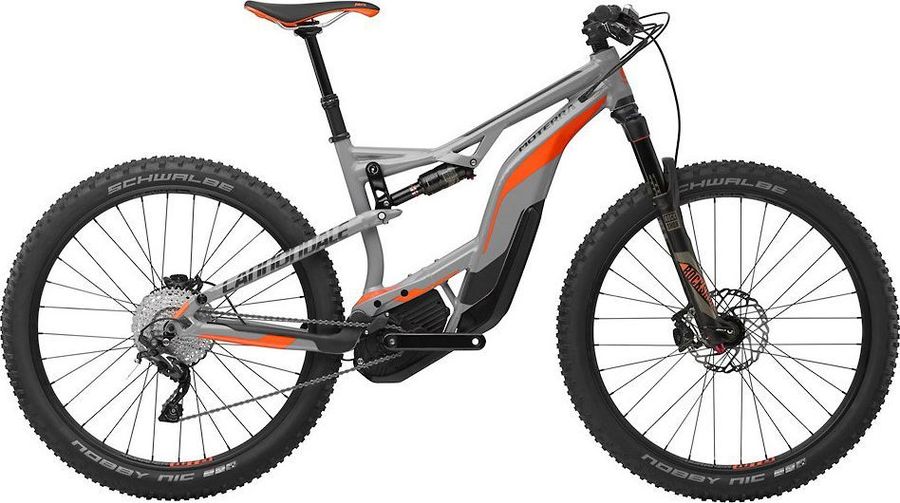

Cannondale Moterra 2 2018
The Cannondale Moterra 2 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm
About the Cannondale Moterra 2 2018
The Cannondale Moterra 2 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale, lock-on
|
|---|
|
Steam
|
Cannondale C3 alloy, 55mm length
|
|---|---|
|
Saddle
|
Fabric Scoop Elite
|
|
Battery
|
BOSCH PowerPack
|
|
Headset
|
Tange Seiki
|
|
Seatpost
|
KS Lev Integra, S - 125mm travel, M/L/XL - 150mm travel
|
|
Handlebar
|
Cannondale C2 alloy, 780mm width, 15mm rise
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Cannondale EC3, Ai offset ring
|
|---|---|
|
Motor
|
BOSCH Performance CX 250W
|
|
Shifter
|
Shimano SLX M-7000, 11-speed
|
|
Chain guide
|
Top guide
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Cassette
|
Sunrace CSMS8 11-46T
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
RockShox Revelation RC
DebonAir
|
|
|
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
WTB I45, 40mm inner width, tubeless ready
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic 2.8", Snakeskin casing, folding bead, tubeless ready
|
|
Spokes
|
32 count front and rear
|
|
Rear hub
|
Formula Disc, 15mm x 110mm quick release front, 12mm x 157mm rear
|
|
Front hub
|
Formula Disc, 15mm x 110mm quick release front, 12mm x 157mm rear
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
440,0
|
480,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
574,0
|
601,0
|
631,0
|
658,0
|
|
d
Head tube length
|
109,7
|
122,4
|
134,4
|
134,4
|
|
e
Head tube angle
|
67,0º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1172,0
|
1183,0
|
1214,0
|
1241,0
|
|
i
Chainstay length
|
457,0
|
457,0
|
457,0
|
457,0
|
|
j
Bottom bracket drop
|
8,0
|
8,0
|
8,0
|
8,0
|
|
k
Stack height
|
598,0
|
612,0
|
623,0
|
623,0
|
|
l
Reach
|
414,0
|
425,0
|
452,0
|
479,0
|
|
m
Standover height
|
747,0
|
758,0
|
762,0
|
765,0
|
|
x
Bottom bracket height
|
347,0
|
347,0
|
347,0
|
347,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
