Cannondale Moterra 2019

E-Bike

MTB Trail

Groupset

Shimano SLX

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Front travel

130mm

Rear travel

130mm

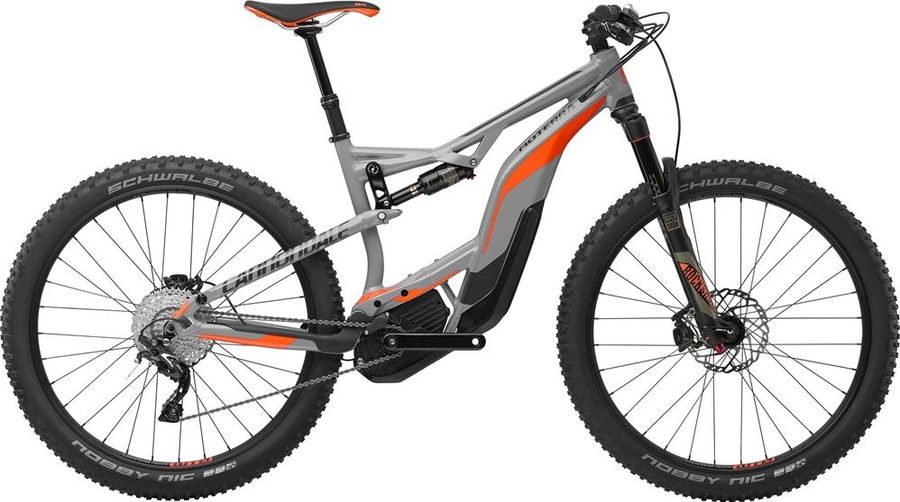

About the Cannondale Moterra 2019

The Cannondale Moterra 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Cannondale Moterra 2019 has 5 features listed below.

Dropper seatpost More info

Boost 110 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Locking Grips
Remote	Bosch Purion

Components
Steam	Cannondale C1, 6061 Alloy, 1-1/8", 31.8, 5 deg, 60mm
Saddle	Fabric Scoop Elite
Battery	Bosch PowerPack 500Wh
Charger	Bosch 4A
Headset	Tange Seiki 1-1/8 to 1.5", integrated
Seatpost	KS LEV Integra, 31.6, 100mm (S)/125mm (M), 150mm (L/XL)
Handlebar	Cannondale C2 Alloy, 9 deg, 15mm rise, 780mm
Brake lever	Shimano SLX hydro disc
Brakes	Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g) 425 (BL-M7100) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M7100 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option J03A Resin (w/ fin) Pad option J04C Metal (w/ fin) Pad standard G03S Resin (w/o fin) Pad standard G04S Metal (w/o fin) Pad mount Pad axle Piston 2 Piston material Ceramic

Drivetrain
Crankset	Cannondale EC3, w/ Ai offset ring, 15t
Motor	Bosch Performance CX 250W US
Shifter	Shimano SLX, I-Spec, 11-speed
Cassette	Sunrace MX8 11-42T 11-speed
Rear derailleur	Shimano SLX RD-M7000-11-SGS
Chain	Shimano CN-HG601 257 g
Average weight (g) 257 Chromizing treatment roller link pin Model CN-HG601-11 Pin link plate Gray Roller link plate SIL-TEC Type HG-X11

Frameset
Frame	Moterra, 130mm, 27+, SmartForm C1 Alloy, Torsion Box downtube, Si motor mount, carbon link
Front suspension	RockShox Revelation RC DebonAir
Color Diffusion Black, Gloss Black Damper type Motion Control fork offset 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 180mm Model FS-RVL-RC-A2 Name Revelation RC Spring DebonAir Travel (mm) 120mm, 130mm, 140mm, 150mm, 160mm Upper tube type 35mm tapered wall aluminum Wheel size 27.5", 29"
Rear suspension	RockShox Monarch R 205 g
Body eyelet Standard Compression tune H, L, L3, M Eye to eye stroke 152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63 Model RS-MNR-R-C3 Name Monarch R Rebound tune H, L, M Shaft eyelet Standard Weight based on 165x38, standard air can, standard eyelet, no hardware Weight 205

Wheels
Rims	WTB Scraper i45, 27.5, 40mm inner, 32h, tubeless ready
Tires	Schwalbe Nobby Nic SnakeSkin, TL-Easy, folding, 27.5X2.8", tubeless ready
Spokes	DT Swiss Champion
Rear hub	Formula Disc - 110x15 front, 157x12 rear
Front hub	Formula Disc - 110x15 front, 157x12 rear
