BikeWise

Cannondale Scalpel Carbon 3 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

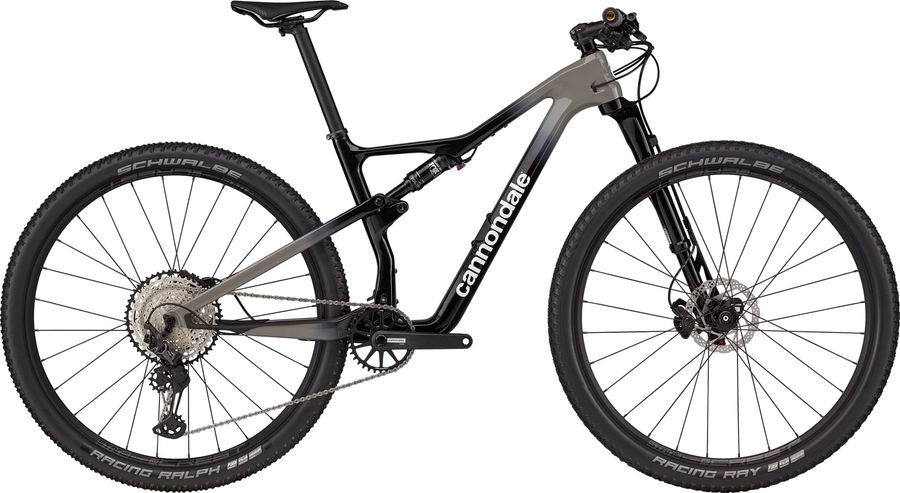

Cannondale Scalpel Carbon 3 2022

About the Cannondale Scalpel Carbon 3 2022

The Cannondale Scalpel Carbon 3 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 148, e-thru axle, and hydraulic disc brakes.

Features

The Cannondale Scalpel Carbon 3 2022 has 6 features listed below.
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Chunky Silicone, 32mm dia.
Pedals
Not included
Components
Steam
Cannondale 3, 6061 Alloy, 31.8, 7°
Saddle
Prologo Dimension NRD, STN rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seatpost
Cannondale 2, 7075 Alloy, 31.6 x 400mm
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Brake lever
Shimano Deore hydraulic disc
Brakes
Shimano Deore
Drivetrain
Crankset
HollowGram, BB30a, OPI SpideRing, 34T, Ai offset
Shifter
Shimano SLX, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
Rear suspension
Fox Float DPS Performance Elite EVOL
Front suspension
Cannondale Lefty Ocho
Wheels
Rims
Stan's NoTubes Crest S1, 28h, tubeless ready
Tires
(F) Schwalbe Racing Ray Performance, 29 x 2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29 x 2.25", Addix Compound, tubeless ready
Spokes
DT Swiss Champion
Rear hub
Shimano MT510 12x148
Front hub
Lefty 60

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
-
-
-
-
c
Top tube length
-
-
-
-
d
Head tube length
-
-
-
-
e
Head tube angle
-
-
-
-
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-
-
-
-
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
