BikeWise

Cannondale Scalpel Carbon SE 2 2022

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

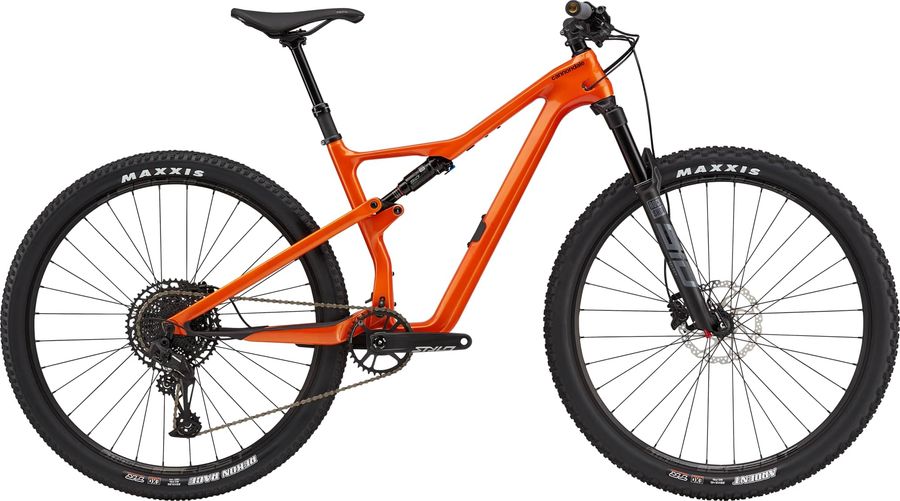

Cannondale Scalpel Carbon SE 2 2022

About the Cannondale Scalpel Carbon SE 2 2022

The Cannondale Scalpel Carbon SE 2 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Cannondale Scalpel Carbon SE 2 2022 has 7 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Chunky Silicone, 32mm dia.
Pedals
Not included
Components
Steam
Cannondale 3, 6061 Alloy, 31.8, 7°
Saddle
Fabric Scoop Radius Sport, steel rails
Headset
Integrated Sealed Bearing, Tapered
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M-L), 150mm (XL)
Handlebar
Cannondale riser, butted 6061 Alloy, 31.8mm, 5° rise, 9° sweep, 760mm
Brake lever
Shimano MT500 hydraulic disc
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K DUB, 34T, Ai offset
Shifter
SRAM SX Eagle, 12-speed
Bottom bracket
SRAM DUB PF30 MTB83
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
All-New, 120mm travel, BallisTec Carbon, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube,Speed Release 12mm thru axle, Ai Offset, Stash compatible
Front suspension
RockShox SID Select DebonAir 1671 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SEL-C1
Name
SID Select
Spring
DebonAir
Travel (mm)
110mm, 120mm
Upper tube type
35mm tapered aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1671
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Stan's NoTubes Crest S1, 32h, tubeless ready
Tires
(F) Maxxis Ardent Race, 29 x 2.35", EXO Protection, tubeless ready (R) Maxxis Recon Race, 29 x 2.25", EXO Protection, tubeless ready
Spokes
Stainless Steel, 14g
Rear hub
Shimano Deore, 12x148
Front hub
Shimano Deore 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
-
-
-
-
c
Top tube length
-
-
-
-
d
Head tube length
-
-
-
-
e
Head tube angle
-
-
-
-
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-
-
-
-
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
