Cannondale Scalpel Carbon SE LTD Lefty 2022

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

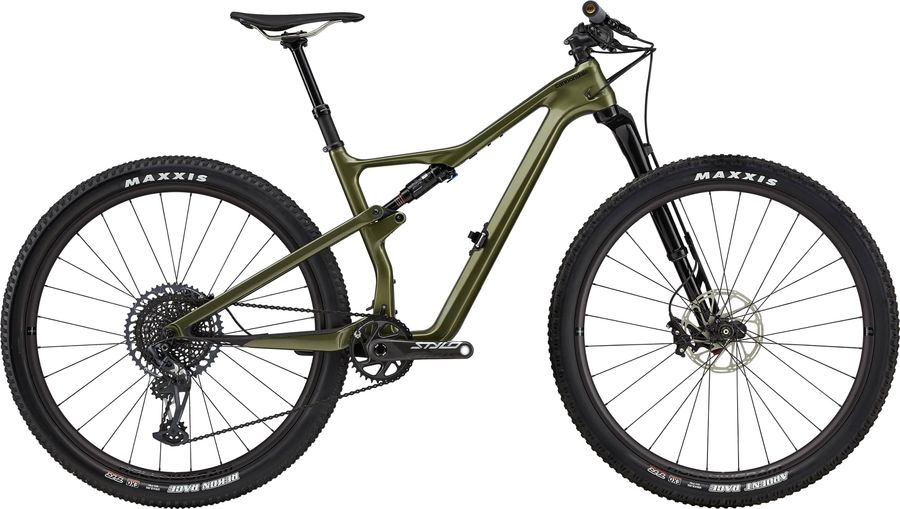

Cannondale Scalpel Carbon SE LTD Lefty 2022

About the Cannondale Scalpel Carbon SE LTD Lefty 2022

The Cannondale Scalpel Carbon SE LTD Lefty 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and e-thru axle.

Features

The Cannondale Scalpel Carbon SE LTD Lefty 2022 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Chunky Silicone
Pedals
Not included
Components
Steam
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Saddle
Fabric Scoop Flat Race, hollow titanium rails
Headset
Integrated Sealed Bearing, Tapered
Seatpost
Cannondale DownLow Dropper w/ Matchmaker lever, 31.6, 100mm (S), 125mm (M, L), 150mm (XL)
Handlebar
Cannondale 1 Riser, Carbon, 15mm rise, 9° sweep, 4° rise, 780mm
Brake lever
SRAM Level TLM hydraulic disc
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
Truvativ Stylo C Eagle DUB, 34T
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
SRAM DUB PF30 Ai
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
120mm travel, Carbon, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
Rear suspension
RockShox SIDluxe Ultimate 231 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-ULT-A1
Name
SIDLuxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
231
Front suspension
Cannondale Lefty Ocho Carbon
Wheels
Rims
HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm IW, tubeless ready
Tires
(F) Maxxis Ardent Race, 29 x 2.40", EXO Protection, tubeless ready (R) Maxxis Recon Race, 29 x 2.35", EXO Protection, tubeless ready
Spokes
DT Swiss Competition Race, straight-pull
Rear hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm thru-axle
Front hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm thru-axle

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
-
-
-
-
c
Top tube length
-
-
-
-
d
Head tube length
-
-
-
-
e
Head tube angle
-
-
-
-
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-
-
-
-
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
