Cannondale Scalpel SE 1 2018

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
115mm

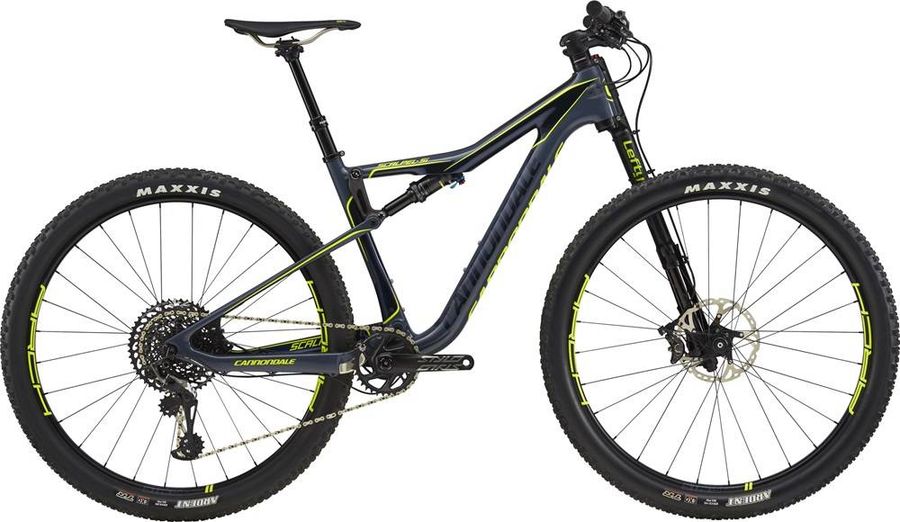

Cannondale Scalpel SE 1 2018

About the Cannondale Scalpel SE 1 2018

The Cannondale Scalpel SE 1 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready.

Features

The Cannondale Scalpel SE 1 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Lock-On
Pedals
Not included
Components
Steam
Cannondale C1, 6061 Alloy, 1.5", 60mm, 31.8, 5°
Saddle
Fabric Scoop Flat Race w/ Titanium Rails
Headset
Cannondale HeadShok Si
Seatpost
RaceFace Turbine Dropper, 31.6mm, 125/150mm travel.
Handlebar
Cannondale C3 riser, Alloy, 4° upsweep, 9° backsweep, 760x15mm
Brake lever
Shimano XT hydro disc
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Truvativ Stylo Eagle 7K, 32t
Shifter
SRAM GX Eagle 12 speed Trigger
Bottom bracket
Cannondale Alloy PressFit30
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Scalpel SE, 115mm, BallisTec Carbon, Zero-Pivot seatstay, Carbon Link, PF30, 1.5 Si head tube, Ai Offset
Rear suspension
Fox Float DPS Performance Elite EVOL
Front suspension
Cannondale Lefty 2.0 Alumínio
Wheels
Rims
Stans NoTubes ZTR ARCH MK3 28hole, Tubeless ready, 26mm inner
Tires
Maxxis Ardent 2.4"/2.25", Dual Compound, EXO Protection, Tubeless Ready
Spokes
DT Swiss Competition
Rear hub
Lefty 60 front, HollowGram by DT-Swiss 142x12 straight pull 28 hole rear (Ai Offset Dish).
Front hub
Lefty 60 front, HollowGram by DT-Swiss 142x12 straight pull 28 hole rear (Ai Offset Dish).

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
72,2º
72,0º
72,0º
72,1º
c
Top tube length
574,0
604,0
627,0
653,0
d
Head tube length
246,0
279,0
310,0
340,0
e
Head tube angle
68,7º
68,5º
68,5º
68,6º
f
Rake
50,0
55,0
55,0
55,0
g
Trail
84,0
87,0
87,0
87,0
h
Wheelbase
1088,0
1130,0
1154,0
300,0
i
Chainstay length
426,0
436,0
436,0
436,0
j
Bottom bracket drop
10,0
27,0
27,0
27,0
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
741,0
779,0
785,0
791,0
x
Bottom bracket height
-
-
-
-
y
Front center
662,0
695,0
719,0
719,0
