Cannondale Scalpel-Si 5 2017

MTB Cross Country
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

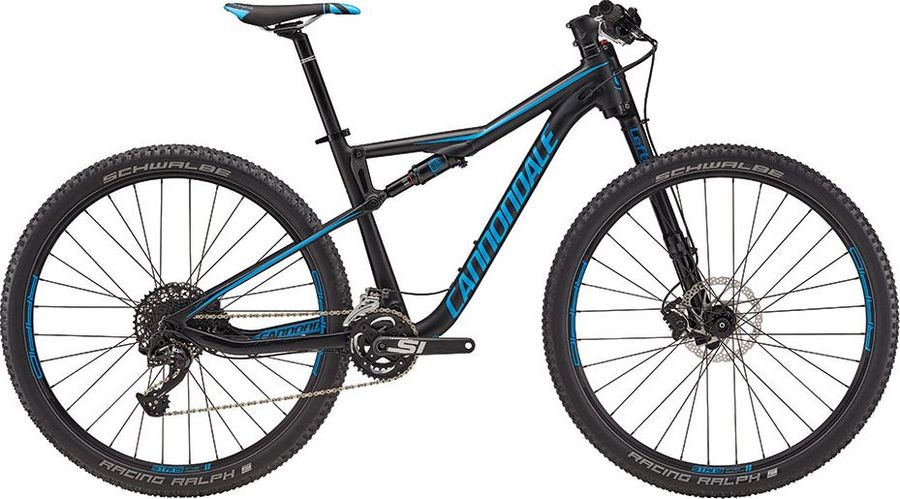

Cannondale Scalpel-Si 5 2017

About the Cannondale Scalpel-Si 5 2017

The Cannondale Scalpel-Si 5 2017 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes.

Features

The Cannondale Scalpel-Si 5 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Cannondale X1 Single Lock Grips
Components
Steam
Cannondale C1, 6061 Alloy, 1.5", 31.8, -5 deg.
Saddle
Prologo K3
Headset
Cannondale HeadShok Si
Seatpost
Cannondale C3, Micro Adjust, 6061 Alloy, 31.6x350mm (S,M) 400mm (L,X)
Handlebar
Cannondale C2 Butted AL2014 Alloy, 760mm
Brake lever
Shimano Deore M506
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Chain
SRAM 11-speed
Crankset
Cannondale Si, BB30, 36/26 CNC Rings
Shifter
SRAM S Series, 2x11
Bottom bracket
Cannondale Alloy PressFit30
Front derailleur
Shimano XT M8000, 11-speed
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Rear derailleur
SRAM GX 2x11 Rear Derailleur 11s 289 g
Cable pull ratio
X-actuation
Cage
Long, Medium
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-11-A1
Name
GX 2x11 Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 2x11 Long Cage Black
Weight
289
Frameset
Frame
Scalpel-Si, 100mm, SmarFormed Alloy, Zero Pivot seatstay, PF30, 1.5 Si head tube, Ai Offset
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Front suspension
Cannondale Lefty 2.0 Alumínio
Wheels
Rims
Stan's ZTR Rapid 29, 32 hole
Tires
Schwalbe Racing Ralph Performance, 29x2.25", folding
Spokes
DT-Swiss Champion (Ai Offset dish - Rear)
Rear hub
Lefty 60 front, Formula DHT-142x12, (Ai Offset dish - Rear)
Front hub
Lefty 60 front, Formula DHT-142x12, (Ai Offset dish - Rear)

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
400,0
440,0
480,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
545,0
567,0
596,0
621,0
645,0
d
Head tube length
97,0
97,0
110,0
122,0
134,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
50,0
50,0
55,0
55,0
55,0
g
Trail
75,0
75,0
77,0
77,0
77,0
h
Wheelbase
1054,0
1076,0
1115,0
1141,0
1166,0
i
Chainstay length
422,0
422,0
432,0
432,0
432,0
j
Bottom bracket drop
20,0
20,0
38,0
38,0
38,0
k
Stack height
547,0
547,0
589,0
601,0
612,0
l
Reach
382,0
404,0
421,0
442,0
463,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
333,0
333,0
334,0
334,0
334,0
y
Front center
631,0
653,0
685,0
711,0
735,0
