Cannondale Scalpel-Si 5 2019

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
12,7 kg
Front travel
100mm
Rear travel
100mm

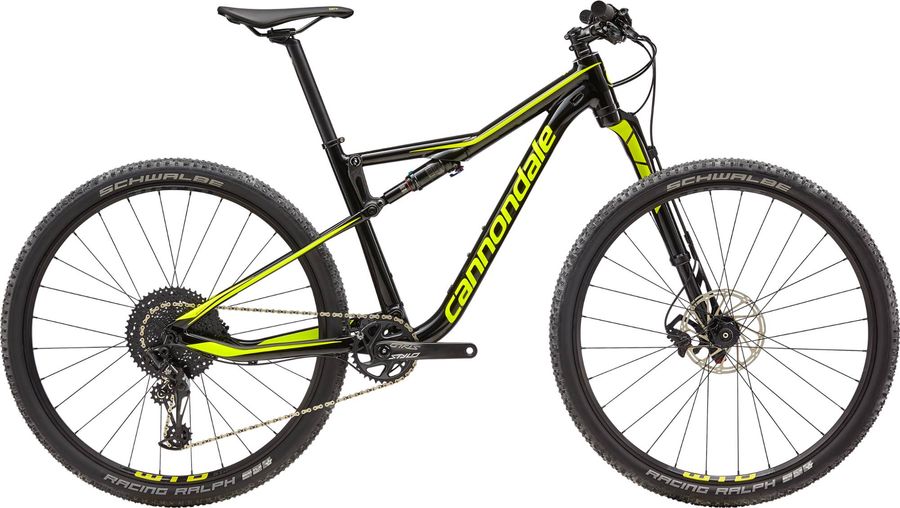

Cannondale Scalpel-Si 5 2019

About the Cannondale Scalpel-Si 5 2019

The Cannondale Scalpel-Si 5 2019 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready. The bike weighs approximately 12,7 kg.

Features

The Cannondale Scalpel-Si 5 2019 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Saddle
Fabric Scoop Shallow Sport, steel rails
Headset
Cannondale HeadShok Si
Seatpost
Cannondale C3, 6061 Alloy, 31.6 x 400mm
Handlebar
Cannondale C3 Flat, 6061 double-butted Alloy, 8° sweep, 760mm
Brake lever
Shimano MT500 hydro disc
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K, 34T, Ai Custom
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
Cannondale BB30
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Scalpel-Si, 100mm, SmartForm C1 Alloy, Zero Pivot seatstay, Carbon Link, PF30, 1.5 Si head tube, Ai Offset
Front suspension
Cannondale Lefty Ocho
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
WTB STX i23 TCS, 28h, tubeless ready
Tires
Schwalbe Racing Ray Performance 27.5/29 x 2.25" front, Racing Ralph Performance 2.25" rear, Addix compound, tubeless ready
Spokes
DT Swiss Champion (Ai Offset dish - rear)
Rear hub
Lefty 60 front, Formula 12x142 rear w/ HG driver
Front hub
Lefty 60 front, Formula 12x142 rear w/ HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
574,0
604,0
627,0
653,0
d
Head tube length
97,0
110,0
122,0
134,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
51,0
51,0
51,0
g
Trail
91,0
92,0
92,0
92,0
h
Wheelbase
1082,0
1125,0
1149,0
1176,0
i
Chainstay length
426,0
436,0
436,0
436,0
j
Bottom bracket drop
10,0
27,0
27,0
27,0
k
Stack height
560,0
603,0
615,0
627,0
l
Reach
394,0
408,0
428,0
450,0
m
Standover height
791,0
835,0
863,0
891,0
x
Bottom bracket height
343,0
345,0
345,0
345,0
y
Front center
656,0
690,0
715,0
741,0
