Cannondale Scalpel-Si Carbon 2 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,4 kg
Front travel
100mm
Rear travel
100mm

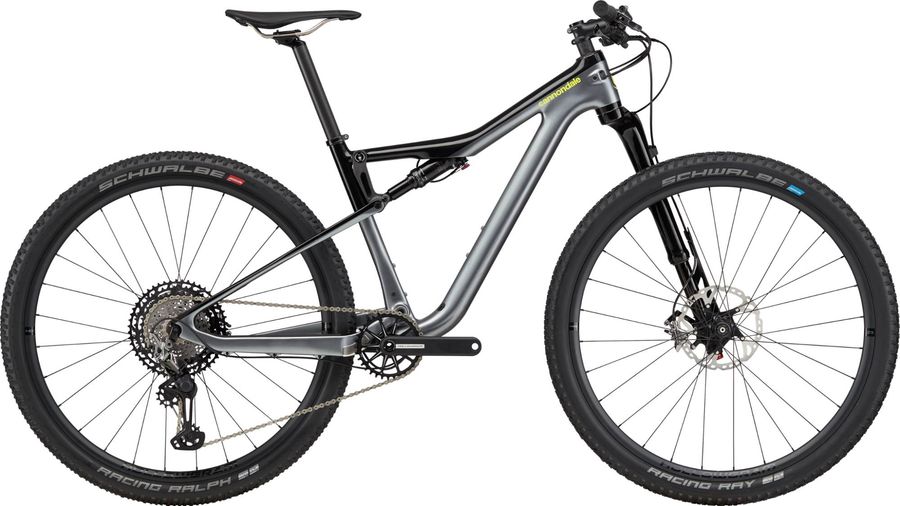

Cannondale Scalpel-Si Carbon 2 2020

About the Cannondale Scalpel-Si Carbon 2 2020

The Cannondale Scalpel-Si Carbon 2 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready. The bike weighs approximately 10,4 kg.

Features

The Cannondale Scalpel-Si Carbon 2 2020 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Saddle
Fabric Scoop Flat Race, titanium rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small only)
Seatpost
Cannondale 2 Carbon, Micro Adjust, 31.6x400mm
Handlebar
Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
Brake lever
Shimano Deore XT hydro disc
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
HollowGram, BB30a, 34T, Ai offset
Shifter
Shimano XT, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
BallisTec Carbon, 100mm travel, Zero Pivot seatstay, Carbon Link, PF30-83, 1.5 Si head tube, Ai Offset, 100mm travel, Zero Pivot seatstay, Carbon Link, PF30-83, 1.5 Si head tube, Ai Offset
Front suspension
Cannondale Lefty Ocho Carbon
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
HollowGram 23, Superlight Hi-Impact Carbon, 28h, 23mm inner width, tubeless ready
Tires
(F) Schwalbe Racing Ray 27.5/29 x 2.25", Snake Skin, Addix Speedgrip Compound, tubeless ready
Spokes
Formula Grand Forza Stainless, straight pull (Ai Offset dish - rear)
Rear hub
(R) HollowGram 12x142 rear w/ DT Swiss internals, Micro Spline
Front hub
(F) Lefty 60

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
-
-
-
-
c
Top tube length
574,0
604,0
627,0
653,0
d
Head tube length
97,0
110,0
122,0
134,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
51,0
51,0
51,0
g
Trail
91,0
92,0
92,0
92,0
h
Wheelbase
1082,0
1125,0
1149,0
1176,0
i
Chainstay length
426,0
436,0
436,0
436,0
j
Bottom bracket drop
10,0
27,0
27,0
27,0
k
Stack height
560,0
603,0
615,0
627,0
l
Reach
394,0
408,0
428,0
450,0
m
Standover height
791,0
835,0
863,0
891,0
x
Bottom bracket height
343,0
345,0
345,0
345,0
y
Front center
656,0
690,0
715,0
741,0
