Cannondale Scalpel-Si Carbon 3 2020

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,3 kg
Front travel
100mm
Rear travel
100mm

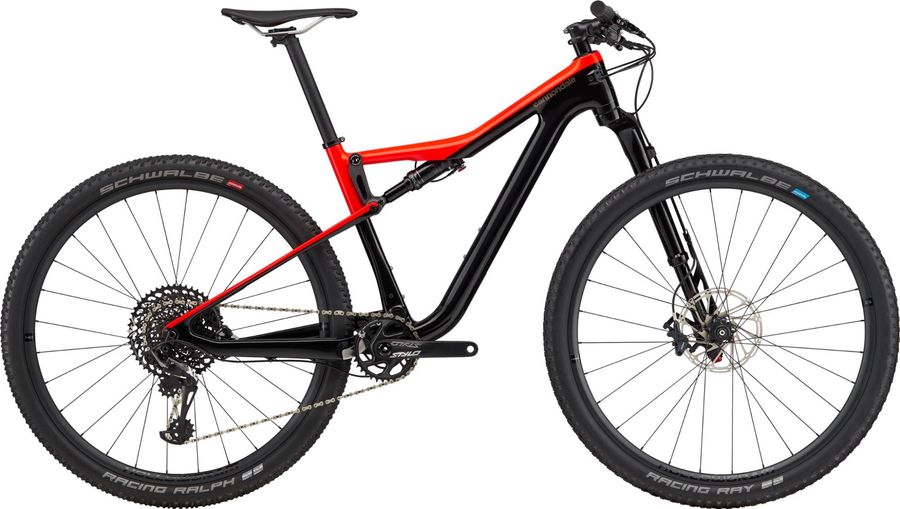

Cannondale Scalpel-Si Carbon 3 2020

About the Cannondale Scalpel-Si Carbon 3 2020

The Cannondale Scalpel-Si Carbon 3 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready. The bike weighs approximately 11,3 kg.

Features

The Cannondale Scalpel-Si Carbon 3 2020 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not Included
Components
Steam
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Saddle
Fabric Scoop Flat Elite, cro-mo rails
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small only)
Seatpost
Cannondale 2, 7075 Alloy, 31.6 x 400mm
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Brake lever
SRAM Level TL hydro disc
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Stylo 6K DUB, 34T, Ai offset
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM DUB PF30 MTB83
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1295 Eagle Cassette 12s 357 g
Cog finish cassete
Black
Cog sizes
10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Gearing
10-50t
Model
CS-XG-1295-A1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
357
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
BallisTec Carbon, 100mm travel, Zero Pivot seatstay, Carbon Link, PF30-83, 1.5 Si head tube, Ai Offset, 100mm travel, Zero Pivot seatstay, Carbon Link, PF30-83, 1.5 Si head tube, Ai Offset
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Cannondale Lefty Ocho
Wheels
Rims
HollowGram 23, Superlight Hi-Impact Carbon, 28h, 23mm inner width, tubeless ready
Tires
(F) Schwalbe Racing Ray 27.5/29 x 2.25", Snake Skin, Addix Speedgrip Compound, tubeless ready
Spokes
Formula Grand Forza Stainless, straight pull (Ai Offset dish - rear)
Rear hub
(R) HollowGram 12x142 rear w/ DT Swiss internals, XD driver
Front hub
(F) Lefty 60

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
-
-
-
-
c
Top tube length
574,0
604,0
627,0
653,0
d
Head tube length
97,0
110,0
122,0
134,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
51,0
51,0
51,0
g
Trail
91,0
92,0
92,0
92,0
h
Wheelbase
1082,0
1125,0
1149,0
1176,0
i
Chainstay length
426,0
436,0
436,0
436,0
j
Bottom bracket drop
10,0
27,0
27,0
27,0
k
Stack height
560,0
603,0
615,0
627,0
l
Reach
394,0
408,0
428,0
450,0
m
Standover height
791,0
835,0
863,0
891,0
x
Bottom bracket height
343,0
345,0
345,0
345,0
y
Front center
656,0
690,0
715,0
741,0
