Cannondale Scalpel-Si Carbon SE 2020

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,8 kg
Front travel
120mm
Rear travel
115mm

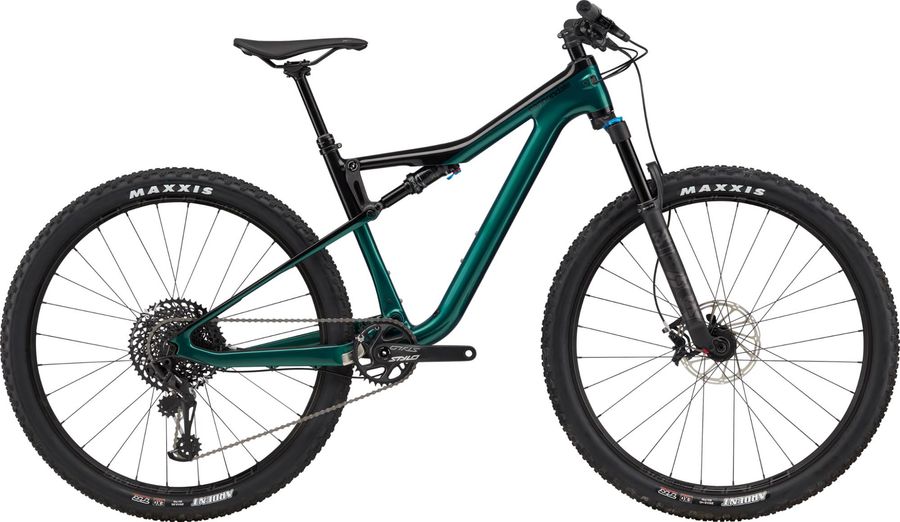

Cannondale Scalpel-Si Carbon SE 2020

About the Cannondale Scalpel-Si Carbon SE 2020

The Cannondale Scalpel-Si Carbon SE 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 12,8 kg.

Features

The Cannondale Scalpel-Si Carbon SE 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Fabric Funguy Locking Grips
Pedals
Not Included
Components
Steam
Cannondale 3, 6061 Alloy, 31.8, 7°
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Headset
Tange 1.5 for Tapered Steer tubes
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Handlebar
Cannondale 3 Riser, 6061 Alloy, 31.8mm, 15mm rise, 8° sweep, 4° rise, 780mm
Brake lever
SRAM Guide T hydro disc
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Stylo 6K DUB, 32T. Ai offset
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
SRAM DUB PF30 MTB83
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1295 Eagle Cassette 12s 357 g
Cog finish cassete
Black
Cog sizes
10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Gearing
10-50t
Model
CS-XG-1295-A1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
357
Frameset
Frame
BallisTec Carbon, 115mm travel, Zero-Pivot seatstay, Carbon Link, PF30-83, 1.5 Si head tube, Ai Offset, 115mm travel, Zero-Pivot seatstay, Carbon Link, PF30-83, 1.5 Si head tube, Ai Offset
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 34 Float Performance SC
Wheels
Rims
Stan's NoTubes Arch S1, 28h, tubeless ready
Tires
(F) Maxxis Ardent 27.5/29 x 2.4", EXO Protection, tubeless ready
Spokes
DT Swiss Competition (Ai Offset dish - rear)
Rear hub
(R) Formula 12x142 w/ XD driver
Front hub
(F) Formula 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
-
-
-
-
c
Top tube length
574,0
604,0
627,0
653,0
d
Head tube length
97,0
110,0
122,0
134,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
91,0
99,0
99,0
99,0
h
Wheelbase
1082,0
1118,0
1142,0
1168,0
i
Chainstay length
426,0
436,0
436,0
436,0
j
Bottom bracket drop
10,0
27,0
27,0
27,0
k
Stack height
560,0
606,0
618,0
629,0
l
Reach
394,0
407,0
427,0
449,0
m
Standover height
741,0
779,0
785,0
791,0
x
Bottom bracket height
343,0
345,0
345,0
345,0
y
Front center
656,0
690,0
707,0
734,0
