Cannondale Scalpel-Si Race 2017

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

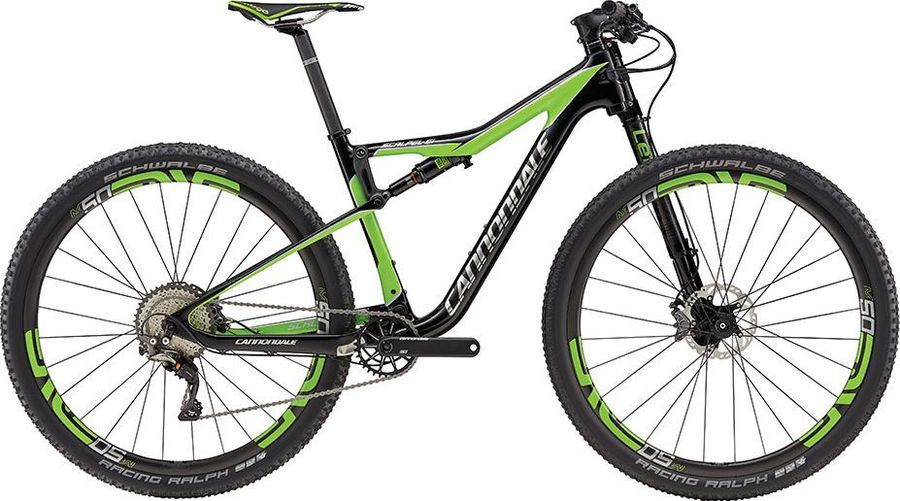

Cannondale Scalpel-Si Race 2017

About the Cannondale Scalpel-Si Race 2017

The Cannondale Scalpel-Si Race 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes, remote lockout, and tubeless ready.

Features

The Cannondale Scalpel-Si Race 2017 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Components
Steam
Cannondale C1, 6061 Alloy, 1.5", 31.8, -5 deg.
Saddle
ProLogo Zero II TiRox Rails
Headset
Cannondale HeadShok Si
Seatpost
Cannondale C2 Carbon, Micro Adjust, 31.6x350mm (S,M) 400mm (L,X)
Handlebar
Cannondale C-Zero flat, Carbon, 760mm
Brake lever
Shimano XTR Race, carbon lever
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Cannondale HollowGram Si, hollow forged, BB30, 32t Ai SpideRing
Shifter
Shimano XTR, 1x11
Bottom bracket
Cannondale Alloy PressFit30
Chain
Shimano CN-HG901 247 g
Average weight (g)
247
Chromizing treatment roller link pin
Model
CN-HG901-11
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Scalpel-Si, 100mm, BallisTec Hi-MOD Carbon, Zero Pivot seatstay, PF30, 1.5 Si head tube, Ai Offset
Front suspension
Cannondale Lefty 2.0 Carbon
Rear suspension
RockShox Monarch XX 275 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380, 430
Model
RS-MNR-XX-C2
Name
Monarch XX
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
275
Wheels
Rims
ENVE Carbon M50, tubeless ready,28h
Tires
Schwalbe Racing Ralph EVO Snakeskin, 29x2.25", folding, tubeless ready
Spokes
DT Swiss AeroLite (Ai Offset dish - Rear)
Rear hub
Lefty 60 front, DT-Swiss C-36 Custom 36 Point Engagement, 142x12, 28 hole (Ai Offset dish - Rear)
Front hub
Lefty 60 front, DT-Swiss C-36 Custom 36 Point Engagement, 142x12, 28 hole (Ai Offset dish - Rear)

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
400,0
440,0
480,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
545,0
567,0
596,0
621,0
645,0
d
Head tube length
97,0
97,0
110,0
122,0
134,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
50,0
50,0
55,0
55,0
55,0
g
Trail
75,0
75,0
77,0
77,0
77,0
h
Wheelbase
1054,0
1076,0
1115,0
1141,0
1166,0
i
Chainstay length
422,0
422,0
432,0
432,0
432,0
j
Bottom bracket drop
20,0
20,0
38,0
38,0
38,0
k
Stack height
547,0
547,0
589,0
601,0
612,0
l
Reach
382,0
404,0
421,0
442,0
463,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
333,0
333,0
334,0
334,0
334,0
y
Front center
631,0
653,0
685,0
711,0
735,0
