Cannondale Scalpel-Si Team 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

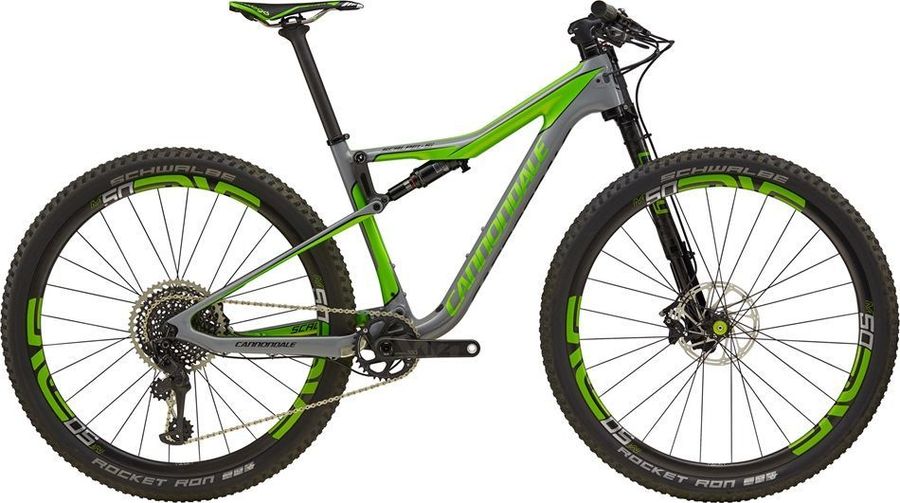

Cannondale Scalpel-Si Team 2018

About the Cannondale Scalpel-Si Team 2018

The Cannondale Scalpel-Si Team 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes, remote lockout, and tubeless ready.

Features

The Cannondale Scalpel-Si Team 2018 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Locking Grips
Pedals
Not included
Components
Steam
Cannondale C1, 7075 Alloy, 31.8, -5°
Saddle
ProLogo Zero II TiRox Rails
Headset
Cannondale HeadShok Si
Seatpost
Cannondale C1 Full Carbon, 31.6x420mm
Handlebar
Cannondale C1 flat, Carbon, 760mm
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle, BB30, 34T, Ai Custom
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
Cannondale Alloy PressFit30
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Scalpel-Si, 100mm, BallisTec Hi-MOD Carbon, Zero Pivot seatstay, Carbon Link, PF30, 1.5 Si head tube, Ai Offset
Front suspension
Cannondale Lefty 2.0 Carbon
Rear suspension
RockShox Monarch XX 275 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380, 430
Model
RS-MNR-XX-C2
Name
Monarch XX
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
275
Wheels
Rims
ENVE Carbon M50,21mm inner, Tubeless Ready,28h
Tires
Schwalbe Rocket Ron EVO Snakeskin, 29x2.25", folding, Tubeless Ready
Spokes
DT Swiss AeroLite (Ai Offset dish - Rear)
Rear hub
Lefty 60 front, HollowGram by DT-Swiss Rear, Star Ratchet, 142x12, 28 hole (Ai Offset dish - Rear)
Front hub
Lefty 60 front, HollowGram by DT-Swiss Rear, Star Ratchet, 142x12, 28 hole (Ai Offset dish - Rear)

Geometry

Size LG XL SM MD
a
Seat tube length
122,0
132,0
102,0
112,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
518,0
542,0
564,0
593,0
d
Head tube length
310,0
340,0
246,0
279,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
55,0
55,0
50,0
55,0
g
Trail
77,0
77,0
75,0
77,0
h
Wheelbase
1138,0
1153,0
1073,0
1112,0
i
Chainstay length
429,0
429,0
419,0
429,0
j
Bottom bracket drop
38,0
38,0
20,0
38,0
k
Stack height
498,0
509,0
544,0
586,0
l
Reach
-
-
-
-
m
Standover height
744,0
749,0
709,0
748,0
x
Bottom bracket height
-
-
-
-
y
Front center
711,0
735,0
553,0
585,0
