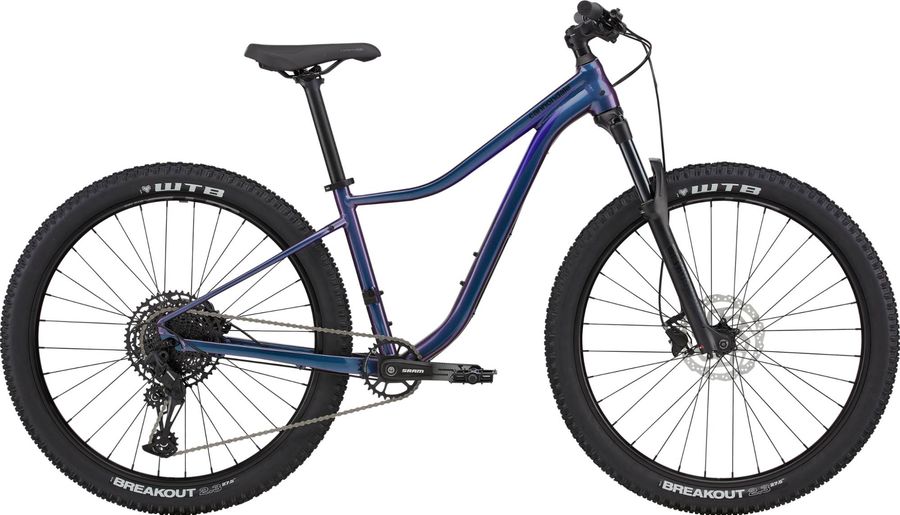

Cannondale Tango 1 2020

Women's Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,2 kg
Front travel
120mm
Cannondale Tango 1 2020

About the Cannondale Tango 1 2020

The Cannondale Tango 1 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,2 kg.

Features

The Cannondale Tango 1 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Low-Profile Locking Grips
Pedals
Cannondale Platform
Components
Steam
Cannondale 3 with Intellimount, alloy, 31.8mm clamp
Saddle
Cannondale Stage 3 Women's Ergo
Headset
Semi Integrated, 1-1/8" reducer
Seatpost
6061 Alloy, 31.6 x 350mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Brake lever
Shimano MT200 hydro disc
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle, 30T
Shifter
SRAM SX Eagle, 12-speed
Bottom bracket
Truvativ Power Spline
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73, SAVE, Boost spacing, Tapered 1-1/8" to 1.5" headtube, Flat mount brake, StraightShot internal cable routing, BSA-73
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB STX i23 TCS, 32h, tubeless ready
Tires
WTB Breakout Comp, 27.5/29 x 2.3", DNA Compound
Spokes
Stainless Steel, 14g
Rear hub
Shimano MT200, Boost 141, QR
Front hub
Shimano MT400 15x110

Geometry

Size XS SM MD
a
Seat tube length
345,0
385,0
420,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
541,0
566,0
591,0
d
Head tube length
95,0
100,0
105,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
g
Trail
102,0
102,0
102,0
h
Wheelbase
1066,0
1091,0
1117,0
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
55,0
55,0
55,0
k
Stack height
598,0
603,0
607,0
l
Reach
363,0
386,0
410,0
m
Standover height
650,0
677,0
696,0
x
Bottom bracket height
309,0
309,0
309,0
y
Front center
635,0
661,0
686,0
