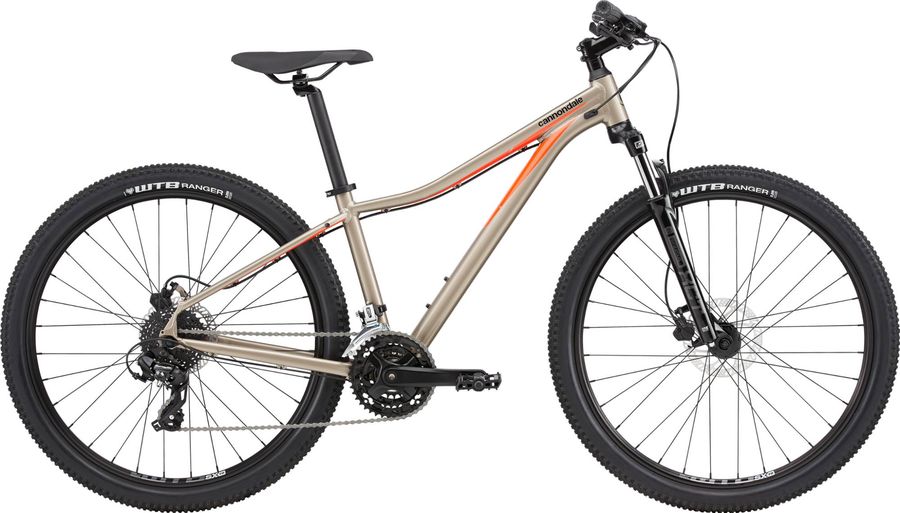

Cannondale Tango 5 2020
The Cannondale Tango 5 2020 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,3 kg
Front travel
100mm
About the Cannondale Tango 5 2020
The Cannondale Tango 5 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 14,3 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Cannondale Dual-Density
|
|---|---|
|
Pedals
|
Cannondale Platform
|
|
Steam
|
6061 Alloy, 31.8, 8°
|
|---|---|
|
Saddle
|
Cannondale Stage 2 Women's
|
|
Headset
|
Semi Integrated, 1-1/8" reducer
|
|
Seatpost
|
6061 Alloy, 31.6 x 350mm
|
|
Handlebar
|
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
|
|
Brake lever
|
Tektro M275 hydro disc
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Prowheel alloy, 42/32/22
|
|---|---|
|
Shifter
|
Shimano Altus, 3x8
|
|
Bottom bracket
|
Sealed Cartridge
|
|
Front derailleur
|
Shimano Altus, 34.9 clamp
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z72
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Frame
|
All-New, SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, BSA-73, SAVE, 1-1/8" headtube, Post mount disc, StraightShot internal cable routing, BSA-73
|
|---|---|
|
Front suspension
|
SR Suntour XCT DS
|
|
Rims
|
WTB SX19, 32h
|
|---|---|
|
Tires
|
WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Sealed Alloy Disc, QR
|
|
Front hub
|
Sealed Alloy Disc, QR
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
381,0
|
432,0
|
470,0
|
533,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
533,0
|
575,0
|
607,0
|
632,0
|
657,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
97,0
|
97,0
|
101,0
|
101,0
|
101,0
|
|
h
Wheelbase
|
1052,0
|
1096,0
|
1138,0
|
1164,0
|
1190,0
|
|
i
Chainstay length
|
438,0
|
438,0
|
443,0
|
443,0
|
443,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
571,0
|
589,0
|
621,0
|
630,0
|
639,0
|
|
l
Reach
|
363,0
|
400,0
|
423,0
|
445,0
|
467,0
|
|
m
Standover height
|
671,0
|
708,0
|
766,0
|
793,0
|
837,0
|
|
x
Bottom bracket height
|
293,0
|
293,0
|
307,0
|
307,0
|
307,0
|
|
y
Front center
|
621,0
|
665,0
|
702,0
|
728,0
|
754,0
|
