Cannondale Trail 4 2019

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

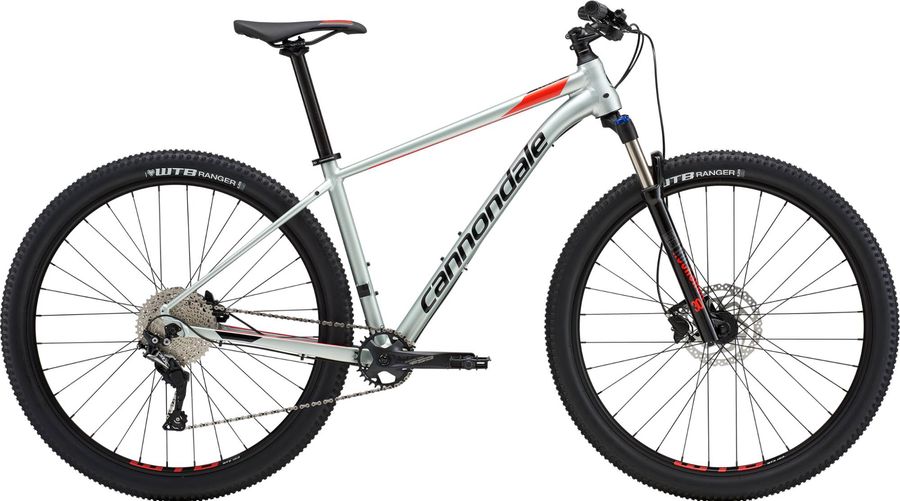

Cannondale Trail 4 2019

About the Cannondale Trail 4 2019

The Cannondale Trail 4 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes e tubeless ready.

Features

The Cannondale Trail 4 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Dual-Density
Pedals
Cannondale Platform
Components
Steam
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Saddle
Cannondale Stage 3
Headset
Semi Integrated, 1-1/8 reducer
Seatpost
Cannondale C4, 6061 Alloy, 31.6 x 350mm
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Brake lever
Shimano MT200 hydro disc
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA Gamma Pro, 30T
Shifter
Shimano SLX, 11-speed
Bottom bracket
FSA MegaExo
Cassette
Sunrace MX8 11-42T 11-speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Chain
KMC X11
Frameset
Frame
Trail, SmartForm C2 Alloy, SAVE, 1-1/8” head tube
Front suspension
RockShox 30 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30S-TK-A4
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
WTB STX i23 TCS, 32h, tubeless ready
Tires
WTB Ranger Comp, 27.5/29 x 2.25" DNA Compound
Spokes
Stainless Steel, 14g
Rear hub
Formula QR front, Boost QR rear w/ HG driver
Front hub
Formula QR front, Boost QR rear w/ HG driver

Geometry

Size XS SM MD MD LG XL XXL
a
Seat tube length
345,0
400,0
440,0
440,0
480,0
520,0
560,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
541,0
581,0
606,0
606,0
631,0
656,0
681,0
d
Head tube length
95,0
105,0
115,0
115,0
125,0
135,0
145,0
e
Head tube angle
68,0º
68,0º
68,0º
68,5º
68,5º
68,5º
68,5º
f
Rake
42,0
42,0
42,0
51,0
51,0
51,0
51,0
g
Trail
102,0
102,0
102,0
92,0
92,0
92,0
92,0
h
Wheelbase
1063,0
1104,0
1130,0
1136,0
1162,0
1188,0
1214,0
i
Chainstay length
436,0
436,0
436,0
441,0
441,0
441,0
441,0
j
Bottom bracket drop
60,0
60,0
60,0
65,0
65,0
65,0
65,0
k
Stack height
603,0
612,0
622,0
620,0
629,0
639,0
648,0
l
Reach
361,0
398,0
420,0
421,0
443,0
466,0
488,0
m
Standover height
706,0
742,0
770,0
791,0
816,0
846,0
876,0
x
Bottom bracket height
304,0
304,0
304,0
308,0
308,0
308,0
308,0
y
Front center
634,0
675,0
701,0
703,0
729,0
754,0
781,0
