Cannondale Trail 5 2018

MTB Cross Country

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5" / 29"

Suspension type

Hardtail

Front travel

100mm

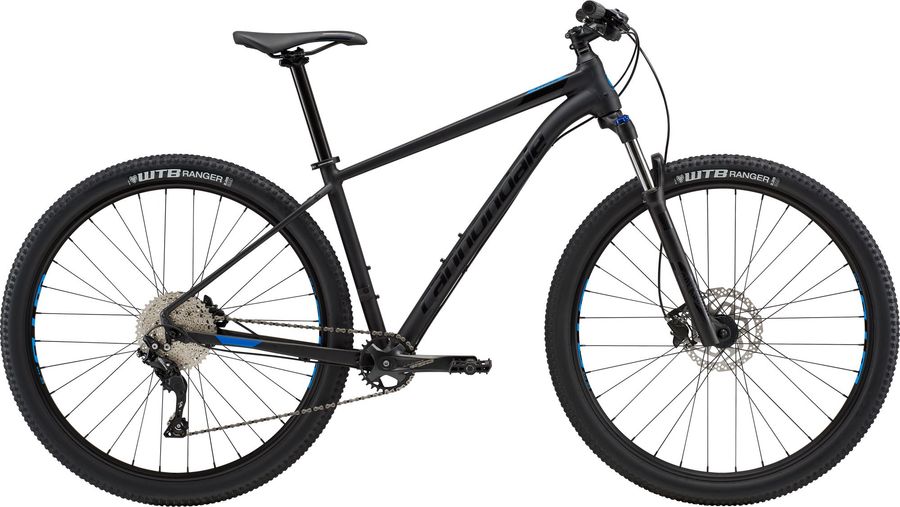

About the Cannondale Trail 5 2018

The Cannondale Trail 5 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Cannondale Trail 5 2018 has 4 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Cannondale Locking Grips
Pedals	Cannondale Platform

Components
Steam	Cannondale C3, 6061 Alloy, 1-1/8", 31.8, 5°
Saddle	Cannondale Stage 3
Headset	Sealed Semi Integrated, 1-1/8 reducer
Seatpost	Cannondale C4, 6061 alloy, 31.6x350mm
Handlebar	Cannondale C3 riser, Alloy, 4° upsweep, 9° backsweep, 760x15mm
Brake lever	Shimano M315 hydro disc
Brakes	Shimano Altus BR-M315

Drivetrain
Crankset	FSA Alpha Drive, 3 piece, forged, 30t
Shifter	Shimano Deore M6000 1x10-speed
Rear derailleur	Shimano Deore RD-M6000-GS GS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 42T Lower pulley min 42T Model RD-M6000-GS P axle finish Painted P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage GS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 41T
Chain	KMC X10
Cassette	Sunrace MS3 11-42T 10-speed

Frameset
Frame	New Trail, SmartForm C2 Alloy, SAVE, BOOST spacing, Tapered Headtube, Flat Mount Rear Brake, Internal Cable Routing.
Front suspension	RockShox XC30 TK Coil
Color Diffusion Black, Gloss Black Damper type TurnKey fork offset 42mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-XC30-TK-B4 Name XC30 TK Spring Coil Travel (mm) 100mm, 120mm, 80mm Upper tube type 30mm straight wall steel Wheel size 27.5", 29"

Wheels
Rims	WTB STX TCS i23m 32 hole, tubeless ready
Tires	WTB Ranger Comp 27.5/29x2.25" DNA Compound
Spokes	Stainless Steel, 14g
Rear hub	Formula DC1420 front, Custom BOOST QR Formula rear
Front hub	Formula DC1420 front, Custom BOOST QR Formula rear
