Cannondale Trail 6 2019
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

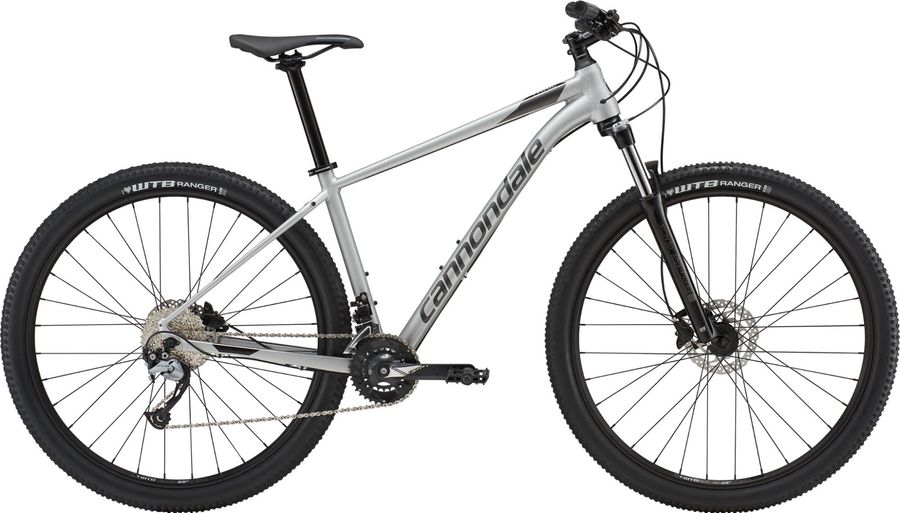

About the Cannondale Trail 6 2019
The Cannondale Trail 6 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Cannondale Dual-Density
|
|---|---|
|
Pedals
|
Cannondale Platform
|
|
Steam
|
Cannondale C4, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
|
|---|---|
|
Saddle
|
Cannondale Stage 3
|
|
Headset
|
Sealed Semi Integrated, 1-1/8 reducer
|
|
Seatpost
|
Cannondale C4, 6061 Alloy, 31.6 x 400mm
|
|
Handlebar
|
Cannondale C4 Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
|
|
Brake lever
|
Shimano MT200 hydro disc
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
FSA Comet, Alpha Drive, 36/22
|
|---|---|
|
Shifter
|
Shimano Altus, 2x9
|
|
Bottom bracket
|
Sealed Bearing BSA
|
|
Front derailleur
|
MicroShift Direct Mount
|
|
Cassette
|
Sunrace M98 11-36T 9-speed
|
|
Rear derailleur
|
Shimano Acera RD-M3000
|
|
Chain
|
KMC X9
|
|
Frame
|
Trail, SmartForm C2 Alloy, SAVE, 1-1/8” head tube
|
|---|---|
|
Front suspension
|
SR Suntour XCM-RL
|
|
Rims
|
WTB SX19, 32h
|
|---|---|
|
Tires
|
WTB Ranger Comp, 27.5/29 x 2.25" DNA Compound
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Formula QR front, Boost QR rear w/ HG driver
|
|
Front hub
|
Formula QR front, Boost QR rear w/ HG driver
|
Geometry
| Size | XS | SM | MD | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
345,0
|
400,0
|
440,0
|
440,0
|
480,0
|
520,0
|
560,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
541,0
|
581,0
|
606,0
|
606,0
|
631,0
|
656,0
|
681,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
115,0
|
125,0
|
135,0
|
145,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
102,0
|
102,0
|
102,0
|
92,0
|
92,0
|
92,0
|
92,0
|
|
h
Wheelbase
|
1063,0
|
1104,0
|
1130,0
|
1136,0
|
1162,0
|
1188,0
|
1214,0
|
|
i
Chainstay length
|
436,0
|
436,0
|
436,0
|
441,0
|
441,0
|
441,0
|
441,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
603,0
|
612,0
|
622,0
|
620,0
|
629,0
|
639,0
|
648,0
|
|
l
Reach
|
361,0
|
398,0
|
420,0
|
421,0
|
443,0
|
466,0
|
488,0
|
|
m
Standover height
|
706,0
|
742,0
|
770,0
|
791,0
|
816,0
|
846,0
|
876,0
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
304,0
|
308,0
|
308,0
|
308,0
|
308,0
|
|
y
Front center
|
634,0
|
675,0
|
701,0
|
703,0
|
729,0
|
754,0
|
781,0
|
