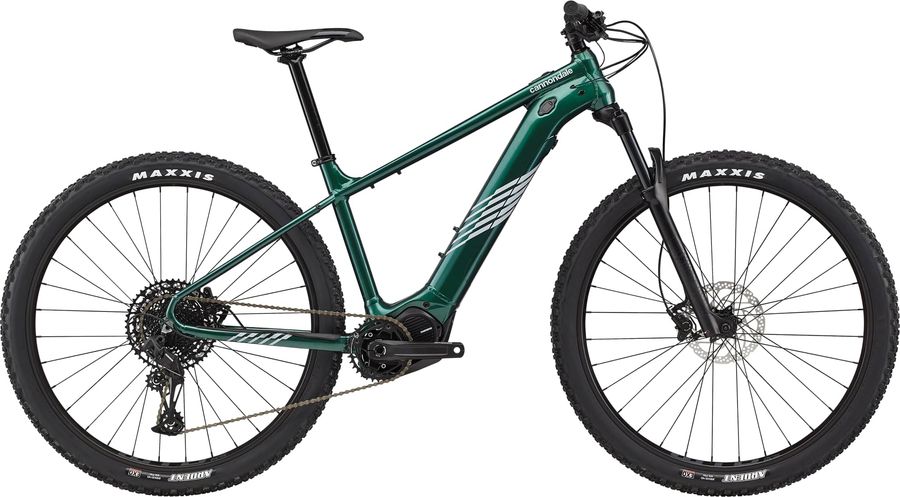

Cannondale Trail Neo S 1 2022
The Cannondale Trail Neo S 1 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm
About the Cannondale Trail Neo S 1 2022
The Cannondale Trail Neo S 1 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale Lockring Grips
|
|---|---|
|
Pedals
|
Not included
|
|
Remote
|
Shimano SC-E7000, Bluetooth enabled
|
|
Steam
|
Cannondale, 6061 Alloy, 31.8, 7°
|
|---|---|
|
Saddle
|
Cannondale Ergo XC
|
|
Battery
|
Shimano STEPS BT-E8035, 504Wh
|
|
Charger
|
Shimano 2A
|
|
Headset
|
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
|
|
Seatpost
|
Cannondale 4, 6061 Alloy, 31.6 x 350mm
|
|
Handlebar
|
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
|
|
Brake lever
|
Shimano MT400 hydraulic disc
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
FSA Shimano E-Bike, 34T
|
|---|---|
|
Motor
|
Shimano STEPS DU-EP8000 250W
|
|
Shifter
|
SRAM SX Eagle 12-Speed
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM NX Eagle
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, folding lock mount, rack/fender mounts, Si kickstand mount
|
|---|---|
|
Front suspension
|
RockShox Judy Silver TK
Solo Air
|
|
|
|
|
Rims
|
WTB STX i29 TCS, 32h, tubeless ready
|
|---|---|
|
Tires
|
Maxxis Ardent, 29 x 2.4", Folding 60TPI E
|
|
Spokes
|
Stainless Steel, 14G
|
|
Rear hub
|
Shimano MT400, 12x148mm thru-axle
|
|
Front hub
|
Shimano MT400, 15x110mm thru-axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
-
|
-
|
-
|
-
|
|
b
Seat tube angle
|
-
|
-
|
-
|
-
|
|
c
Top tube length
|
-
|
-
|
-
|
-
|
|
d
Head tube length
|
-
|
-
|
-
|
-
|
|
e
Head tube angle
|
-
|
-
|
-
|
-
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
-
|
-
|
-
|
-
|
|
i
Chainstay length
|
-
|
-
|
-
|
-
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
-
|
-
|
-
|
-
|
|
l
Reach
|
-
|
-
|
-
|
-
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
-
|
-
|
-
|
-
|
|
y
Front center
|
-
|
-
|
-
|
-
|
