Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
145mm

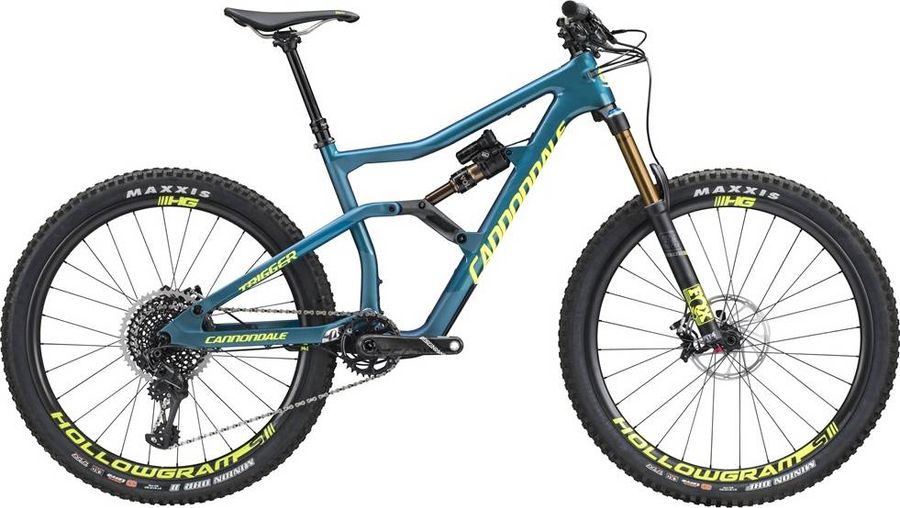

About the Cannondale Trigger 1 2018
The Cannondale Trigger 1 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale Locking Grips
|
|---|---|
|
Pedals
|
Not included
|
|
Steam
|
Cannondale C1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°, 45mm
|
|---|---|
|
Saddle
|
Fabric Scoop Shallow Race with Titanium rails
|
|
Headset
|
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
|
|
Seatpost
|
RaceFace Turbine dropper, Internal Routing, 31.6, Travel - 125mm S / 150mm M-XL
|
|
Handlebar
|
Cannondale C1 Carbon Riser, 15mm rise, 4° up, 9° back, 31.8, 780mm
|
|
Brake lever
|
SRAM Guide RSC w/ contact point adjust, cartridge bearing, reach adjust
|
|
Brakes
|
SRAM Guide RSC
Hydraulic
377 g
|
|
|
|
|
Crankset
|
Truvativ Descendant Carbon Eagle, BB30 w/ custom Ai offset, 30t
|
|---|---|
|
Shifter
|
SRAM X01 Eagle 12-speed, trigger
|
|
Bottom bracket
|
Cannondale Alloy PressFit30
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Frame
|
All-New Trigger, 145mm travel, full BallisTec Carbon, carbon shock link, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
|
|---|---|
|
Rear suspension
|
Fox Float Factory EVOL
|
|
Front suspension
|
Fox 34 Float Factory Kashima
|
|
Rims
|
Cannondale HollowGram 30 Carbon, 30mm inner, Tubeless Ready 27.5"
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.3" front, DHR II 2.3" rear, 3C Compound, EXO puncture protection, folding, Tubeless Ready
|
|
Spokes
|
Cannondale HollowGram 30
|
|
Rear hub
|
HollowGram 30 - 110x15 thru front / 148x12 thru rear w/Ai offset, Maxle Ultimate
|
|
Front hub
|
HollowGram 30 - 110x15 thru front / 148x12 thru rear w/Ai offset, Maxle Ultimate
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
430,0
|
460,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
567,0
|
602,0
|
627,0
|
655,0
|
|
d
Head tube length
|
97,0
|
110,0
|
122,0
|
134,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1136,0
|
1164,0
|
1190,0
|
1220,0
|
|
i
Chainstay length
|
420,0
|
420,0
|
420,0
|
420,0
|
|
j
Bottom bracket drop
|
10,0
|
10,0
|
10,0
|
10,0
|
|
k
Stack height
|
576,0
|
588,0
|
599,0
|
610,0
|
|
l
Reach
|
416,0
|
439,0
|
461,0
|
486,0
|
|
m
Standover height
|
750,0
|
760,0
|
765,0
|
795,0
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
