Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
145mm

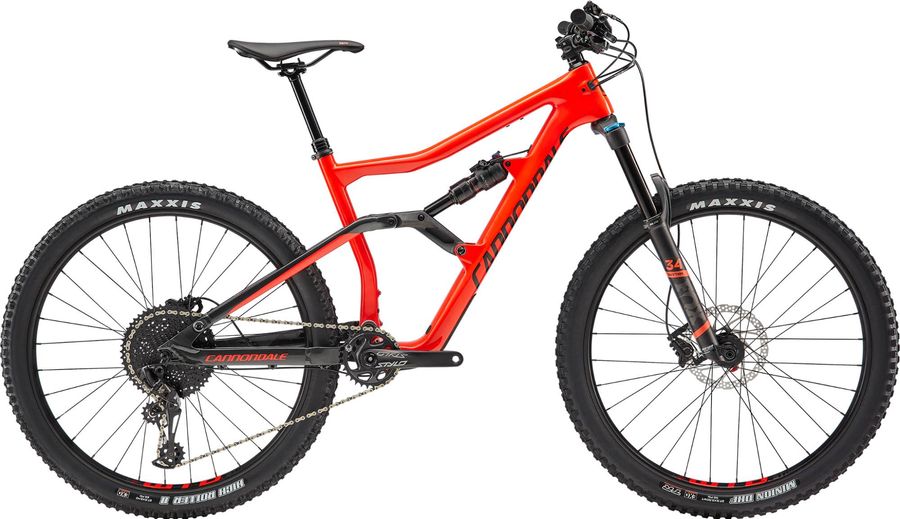

About the Cannondale Trigger 3 2019
The Cannondale Trigger 3 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Cannondale Locking Grips
|
|---|---|
|
Pedals
|
Not Included
|
|
Steam
|
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°, 45mm
|
|---|---|
|
Saddle
|
Fabric Scoop Shallow Sport, steel rails
|
|
Headset
|
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
|
|
Seatpost
|
TranzX dropper, internal routing, 31.6, 100mm (S), 125mm (M-XL)
|
|
Handlebar
|
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
|
|
Brake lever
|
Shimano MT500 hydro disc
|
|
Brakes
|
Shimano BR-MT500
Hydraulic disc brake
2 piston
|
|
SM-RT56* |
|
|
Crankset
|
Truvativ Stylo 6K, 30T, Ai Custom
|
|---|---|
|
Shifter
|
SRAM NX Eagle, 12-speed
|
|
Bottom bracket
|
Cannondale Alloy PressFit30
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Trigger, 145mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, carbon shock link, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered headtube
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rims
|
WTB STS i29 TCS, 32h, tubeless ready
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5 x 2.5" front, High Roller II 2.4" rear, EXO puncture protection, folding
|
|
Spokes
|
DT Swiss Champion (Ai Offset dish - rear)
|
|
Rear hub
|
Formula 15x110 front, 12x148 rear w/ HG driver
|
|
Front hub
|
Formula 15x110 front, 12x148 rear w/ HG driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
430,0
|
460,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
576,0
|
602,0
|
627,0
|
655,0
|
|
d
Head tube length
|
102,0
|
115,0
|
127,0
|
140,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
107,0
|
107,0
|
107,0
|
107,0
|
|
h
Wheelbase
|
1125,0
|
1153,0
|
1179,0
|
1209,0
|
|
i
Chainstay length
|
420,0
|
420,0
|
420,0
|
420,0
|
|
j
Bottom bracket drop
|
12,0
|
12,0
|
12,0
|
12,0
|
|
k
Stack height
|
583,0
|
595,0
|
606,0
|
618,0
|
|
l
Reach
|
409,0
|
431,0
|
453,0
|
478,0
|
|
m
Standover height
|
749,0
|
761,0
|
767,0
|
796,0
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
705,0
|
733,0
|
760,0
|
789,0
|
