BikeWise

Cannondale Trigger Carbon 2 2017

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
85mm

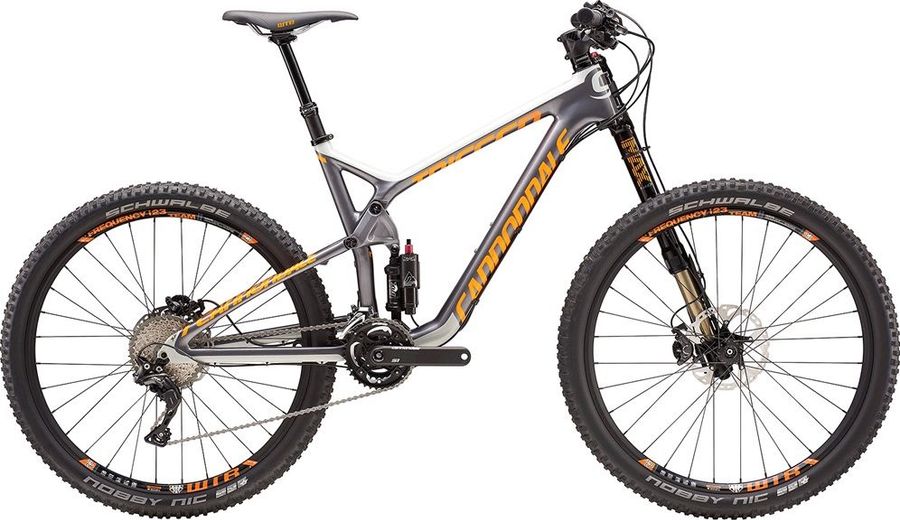

Cannondale Trigger Carbon 2 2017

About the Cannondale Trigger Carbon 2 2017

The Cannondale Trigger Carbon 2 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready.

Features

The Cannondale Trigger Carbon 2 2017 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cannondale Dual Locking Grips
Components
Steam
Cannondale C1, 6061 Alloy, 1.5", 31.8, 5 deg. 55mm
Saddle
WTB Silverado
Headset
Cannondale HeadShok Si
Seatpost
KS LEV Integra dropper, internal routing, 31.6, 125mm (S,M) 150mm (L,X) travel
Handlebar
Cannondale C1 riser, carbon, 4 degree upsweep, 9 degree backsweep, 760x15mm
Brake lever
Shimano XT M8000 w/Servo Wave. Reach Adjust
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Cannondale HollowGram Si, hollow forged, BB30, 36/22 CNC Rings
Shifter
Shimano XT M8000 , 11-speed
Bottom bracket
Cannondale Alloy PressFit30
Front derailleur
Shimano XT M8000
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Chain
Shimano CN-HG600
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Trigger 27.5, 140/85mm, BallisTec Hi-MOD Carbon, PF30, ISCG03, 1.5 Si headtube
Rear suspension
Fox DYAD RT2
Front suspension
Cannondale Left SuperMax 2.0
Wheels
Rims
WTB Frequency Team i23, TCS Tubeless Ready, 27.5"
Tires
Schwalbe Nobby Nic Performance, 27.5 x2.35, Snakeskin, Tubeless Ready, Folding
Spokes
DT Swiss Competition
Rear hub
Lefty 60 front, Formula DC300 142x12mm rear
Front hub
Lefty 60 front, Formula DC300 142x12mm rear
